1510722, Phoenix Contact Straight Male 4 way M12 to Straight Female 4 way M12 Sensor Actuator Cable, 300mm, Кабельная сборка

Sensor/Actuator 4 Way Cable Assemblies, M12 to M12, PUR Cable

M12 to M12 connector cable assemblies, 4 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.

100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II

Approvals

UL, cUL, cULus, GOST.

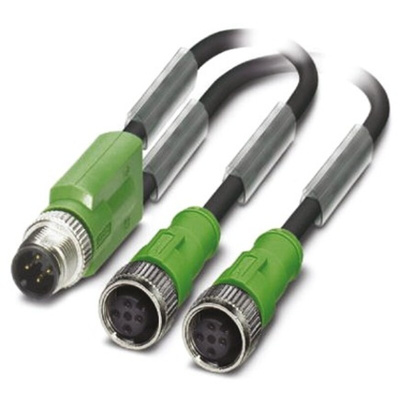

Phoenix Contact Cable Assembly, 4 Core, M12 Plug to M12 Socket - SAC-4P-M12Y/2X0.3-PUR/M12FS VP - 1510722

This M12 cable assembly from Phoenix Contact makes it easy to set up your electrical equipment efficiently. It has a handy Y distributor that lets you connect both a power supply and a signal connector to a single device, making it an ideal choice for sensor and actuator systems. A copper and tin alloy is used for the contacts in the assembly. This offers excellent conductivity for reliable performance, as well as good resistance to corrosion.
The cable's sheath is made from a sturdy polyurethane (PUR) material that offers excellent impact strength, durability and chemical resistance. This means the component offers a reliably long service life, even with heavy use in harsh industrial environments. The 300mm cable is also highly flexible, so it can fit around awkwardly-placed objects or in tight, cramped workplaces.

• Wire size of 22AWG (American Wire Gauge)
• Connector A is a male M12 plug
• Connector B is a female M12 socket
• Four contacts on each connector
• Cross-sectional area of 0.34mm²
• Length of 300mm
• Four cores
• Black sheath colour
• Unshielded

Sensor/Actuator cable - SAC-4P-M12Y/2X0,3-PUR/M12FS VP - 1510722
