1520372, Phoenix Contact Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Phoenix Contact Sensor Actuator Cable, Halogen-Free, 2A Current Rating - SAC-8P-10,0-PUR/M12FS - 1520372

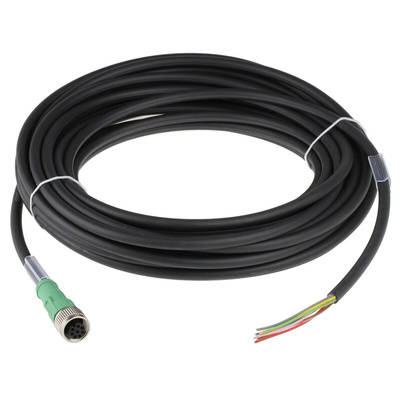

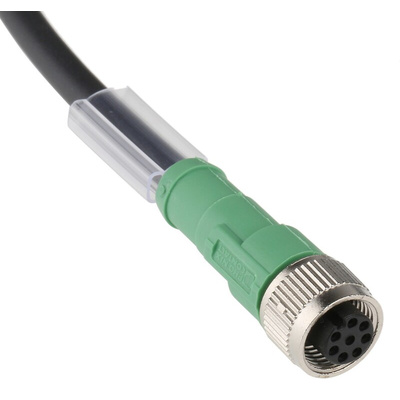

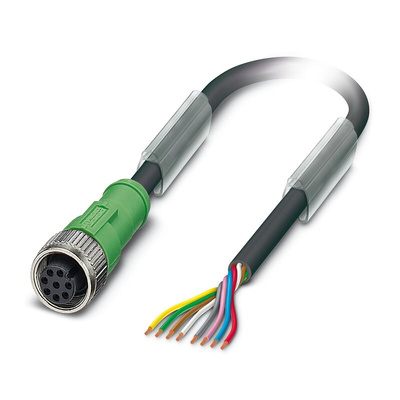

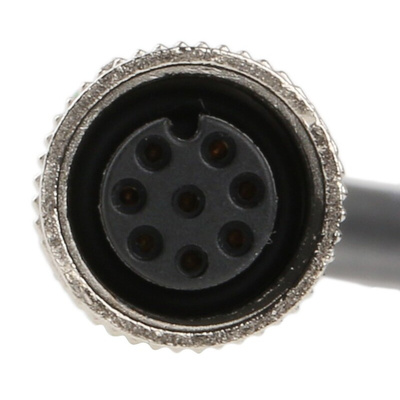

For fuss-free data collection, plug in this Phoenix Contact sensor actuator cable. With its nickel-plated brass contacts, the connector makes efficient electrical connections to keep signals moving smoothly. At one end, there's a female M12 connector with 8 contacts and a knurled screw, for easy compatibility and a secure fix. The other end is unterminated, so you link it directly to your equipment or choose the right fitting for your setup. Wiring is no problem, thanks to the colour-coded cores. Flexible stranded conductors mean the cable bends easily into awkward spaces.
Working with a fluid monitoring sensor? This cable's IP68 rating shows it's fully protected against dust and long-term water submersion, so you can trust it to perform reliably in wet applications. Don't worry about heavy handling, as the PUR sheath resists abrasion and shrugs off cuts. The product's halogen-free design minimises the risk of toxic substance release in a fire to keep your workplace safe.

Features & Benefits

• Service life of at least 100 connection cycles, ensuring long-term data connections
• Cable length of 10m for flexible sensor layout
• Meets EN 60332 standard to indicate effective flame resistance

1520372 Datasheet
