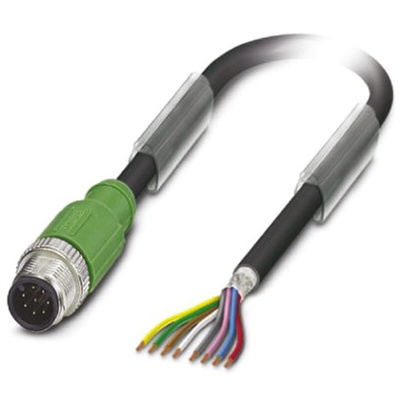

1522781, Phoenix Contact Straight Male 8 way M12 to Unterminated Sensor Actuator Cable, 3m, Кабельная сборка

SAC-8P Sensor/actuator cable - 8 Positions

These SAC-8P open-ended cables from Phoenix Contact are M12 SPEEDCON connectors with an unterminated end. The M12 connection features Phoenix Contact effortless SPEEDCON technology that allows you to connect and create a secure connection with just half a turn of the metal knurl, saving up to 90% of installation time compared to a normal M connector. Not to mention, the SC-8P series come in various lengths ranging from 1.5m up to a maximum length of 10m. The cable is built from a durable and strong PVC yellow with a twist of 8 wires around filler to the core, with a conductor of tin-played copper litz wires.

M12 connectors are typically used in industrial applications such as factory, machinery, automation, industrial ethernet and Fieldbus.

Features and benefits:

• Back by an IP68 rating on the M12 connector once mated


• Rated at a current of 2A or a voltage of 30 V AC/DC


• Standard A-coded


• Open-ended allows you to connect your own connection for numerous possibilities


• Surge voltage category II


• SPEEDCON technology allows for an easy mate and secure locking for a good connection over the long term

The open-ended section of the cable can be connected to Phoenix Contact's range of SACC connectors as long as they're 8-position.

Approvals

cULus Listed

Sensor/Actuator cable - SAC-8P-M12MS/ 3,0-PUR SH - 1522781
