1522943, Phoenix Contact Female 8 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

SAC-8P Sensor/actuator cable - 8 Positions

These SAC-8P open-ended cables from Phoenix Contact are M12 SPEEDCON connectors with an unterminated end. The M12 connection features Phoenix Contact effortless SPEEDCON technology that allows you to connect and create a secure connection with just half a turn of the metal knurl, saving up to 90% of installation time compared to a normal M connector. Not to mention, the SC-8P series come in various lengths ranging from 1.5m up to a maximum length of 10m. The cable is built from a durable and strong PVC yellow with a twist of 8 wires around filler to the core, with a conductor of tin-played copper litz wires.

M12 connectors are typically used in industrial applications such as factory, machinery, automation, industrial ethernet and Fieldbus.

Features and benefits:

• Back by an IP68 rating on the M12 connector once mated


• Rated at a current of 2A or a voltage of 30 V AC/DC


• Standard A-coded


• Open-ended allows you to connect your own connection for numerous possibilities


• Surge voltage category II


• SPEEDCON technology allows for an easy mate and secure locking for a good connection over the long term

The open-ended section of the cable can be connected to Phoenix Contact's range of SACC connectors as long as they're 8-position.

Approvals

cULus Listed

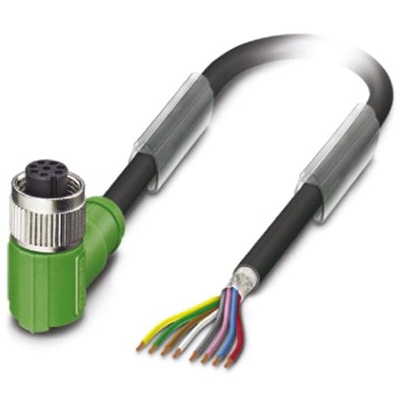

Phoenix Contact Cable Assembly, M12 to Unterminated, 26AWG - SAC-8P-10,0-PUR/M12FR SH - 1522943

This 8-pin cable assembly from Phoenix Contact connects to your sensor or actuator to provide power and transmit data reliably. The 10m length of the cable provides an extensive reach to connect to power supplies or control units across a large distance.

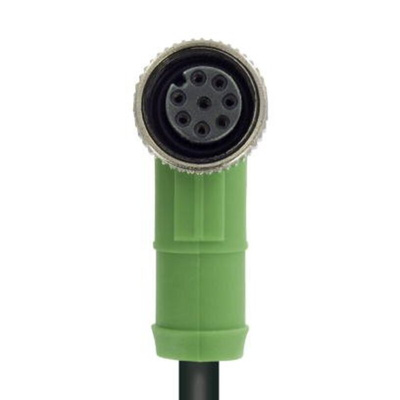

One end of the cable has a standard M12 connector with a knurled ring to tighten it securely in place. The other end is unterminated, so you can strip the 50mm of wire and customise it with the connector that suits your application.
This assembly has a PUR (polyurethane) sheath that resists abrasion and wear for long-lasting use. It can also withstand exposure to UV (ultraviolet) light, so it won't be warped or discoloured when exposed to direct sunlight. The thermoplastic polyurethane (TPU) internal contact carrier material is flame-retardant to enhance the safety of the cable.

Features & Benefits

• IP67 (ingress protection) rating means the unit is resistant to dust and submersion in 1m of water for 30 minutes
• Copper-zinc alloy connector construction ensures high-quality conductivity while preventing corrosion for reliable performance
• Wide operating temperature range of -25°C to +90°C for use in harsh industrial environments

Sensor/Actuator cable - SAC-8P-10,0-PUR/M12FR SH - 1522943
