1607356, Phoenix Contact Female Crimp Circular Connector Contact, Wire Size 0.14 → 0.5 mm², Контакты разъема

Phoenix Contact SF Range Circular Connector Contacts

The SF range of turned circular connector CuZn contacts from Phoenix contact are designed to be used with circular connectors. The connector contact is the component within a connector that carries the electrical signal across a connection.

Features and Benefits

• Male and Female available
• Crimp range of 0.14mm² to 4mm²
• Low contact resistance
• High tensile strength of connection
• Crimp termination method
• Temperature and vibration resistant assembly
• Nickel plated with gold coating

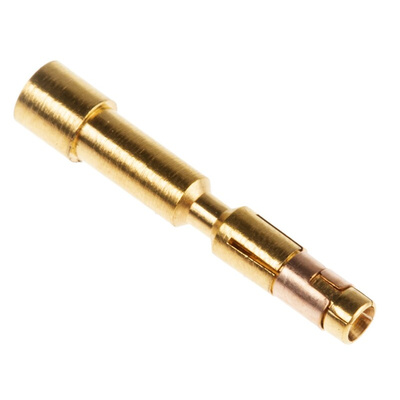

Phoenix Contact Female Crimp Circular Connector Contact, 0.14 to 0.5mm² Wire Size - SF-10KS004 - 1607356

Use this circular connector contact from Phoenix Contact to transfer electrical signals across a connection. Its modular design lets you conveniently replace a single contact without the need for a whole new connector.
The unit is made of hard-wearing brass that resists abrasion, so you can be sure of an extended service life. This metal also has high tensile strength and withstands above-average force without breaking. Its crimp mechanism ensures cable wires are firmly attached to the component, even in conditions where vibration is present. All you need is a crimping tool to create a reliable connection, so there's no need for time-consuming soldering.
Circular connectors and contacts are frequently used in industrial automation applications for transmitting signals, data and power between different devices in a control network. This versatile contact is compatible with wires across a broad cross-section range of 0.14 to 0.5mm².

• Up to 100 insertion and withdrawal cycles for a long lifespan
• Gold-coated contact surface to optimise electrical conductivity
• Rated surge voltage of 6kV, so it's able to withstand spikes in the electrical power supply

Datasheet 1607356
