3043043, Phoenix Contact 1 Way Pluggable Terminal Block, Plug

ST-COMBI connectors

The Phoenix Contact COMBI family offers great flexibility for terminal blocks and connectors to be combined to suit any application. The COMBI system offers the highest levels of protection for users, as both the basic terminal blocks and the plugs are touch proof.

Pull-out multi-pole connectors for CLIPLINE COMBI terminal blocks.
Spring connection.

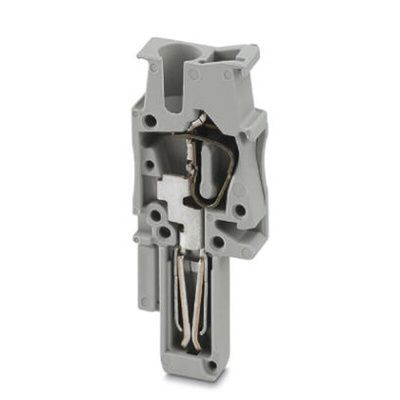

Phoenix Contact Spring-Cage Plug for Modular Terminal Block, 1 Port, 28 to 12AWG - SP 2.5/ 1-M - 3043043

Increase the efficiency of your wiring with this spring-cage plug from Phoenix Contact. It's designed for use with spring-loaded terminal blocks from the ST-COMBI series for easy compatibility. The plug lets you terminate an electrical connection with a simple push-in action, making it quick to install. It can handle wires ranging in size from 28 to 12AWG for versatility. As the internal clamp grips firmly to the wire to minimise the risk of disruption from vibrations, this plug is ideal for machine-building and energy-generation applications.
This component has compact dimensions of 15.8 (length) x 5.2 (width) x 39mm (height), so it can easily fit into a crowded setup. Thanks to a surge voltage rating of 6kV, you can rely on it to withstand sudden power spikes and prevent damage to your equipment.

• Durable PA housing material for resistance to wear and corrosion
• UL94 V-0 rating means burning stops within 10 seconds for safety in the event of a fire
• Meets IEC 61984 safety standards for connectors with voltages between 50 and 1000V AC/DC

CLIPLINE COMBI terminal blocks

A highly flexible system of terminal blocks featuring a disconnectable plug-in zone and 4 connection methods: screw (UT), spring-cage (ST), push-in (DT) and self-stripping (QT). The entire range is standardised. These four connections methods can be freely combined to connect terminal blocks and pluggable connectors, whatever their connector type. Both the bases and connectors are protected from coming into contact with hands. Self-stripping connections (QT-COMBI): Wiring time is reduced by up to 60%, as cables need not be stripped.A screwdriver is used to lock the self-stripping mechanism. Spring terminals (ST - COMBI): The connection point is opened using a screwdriver to lever the spring. This technology provides constant contact force for vibration-proof use. Screw connection (UT - COMBI): Universal terminal enabling a multi-conductor connection.

Plug - SP 2,5/ 1-M - 3043043
