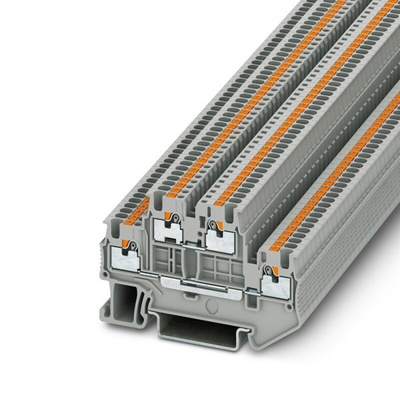

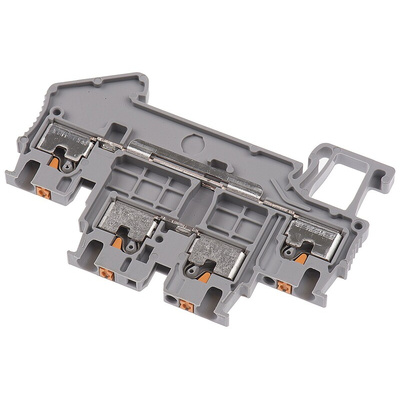

3208511, Phoenix Contact PTTB 1.5/S Series Grey Double Level Terminal Block, 1.5mm², Double-Level, Push In Termination

Phoenix Contact Double-Level Terminal Block, 500V Voltage Rating, 16A Current Rating - PTTB 1,5/S - 3208511

When you need to connect multiple wires through a single device, get this double-level terminal block from Phoenix Contact. It simplifies your setup by neatly stacking four connections over two rows. With compact dimensions of 65.4 (L) x 3.5mm (W), the unit's an easy fit when you don't have much space to spare.
Thanks to the push-in terminals, making links is a straightforward job – just insert a stripped conductor into the clamping point. A spring mechanism holds it firmly in place to prevent accidental disconnections that could cause service disruptions.
As it's made from rugged PA, this durable block can handle the demands of challenging environments. The housing is also self-extinguishing, so it improves safety in the event of a fire. You'll find it handy for your telecommunications, automated and electrical setups.

Features & Benefits

• Holds wires sized 26 to 14AWG, making it compatible with many different applications
• Performs without a hiccup in temperatures ranging between -60°C and +110°C
• IECEx approval for use in potentially explosive environments
• 16A current rating makes it suitable for use with demanding applications

PTTB / PTTBS Double Level Terminal Blocks

3208511 Datasheet

Datasheet - 3208511

Line Drawing - 3208511
