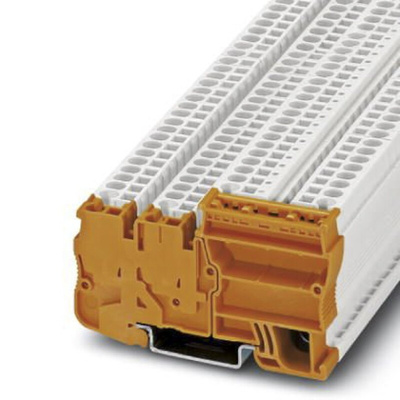

3209196, Phoenix Contact STIO-IN 2.5/3 OG Series Orange Component Terminal Block, Triple-Level, Spring Clamp Termination

STIO Power Terminal Blocks

STIO three-conductor output power terminal block of the same shape with PE connection in the lower level for wiring actuators. Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes.

Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
Potential is supplied via the STIO-IN power terminal blocks
For space and time-saving wiring of three-conductor initiators and actuators
The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential
Connection method: Spring-cage connection
Cross section: 0.08 mm² - 4 mm²; AWG: 28 - 12
Width: 10.4 mm
Color: orange
Mounting type: NS 35/7,5, NS 35/15

Power terminal block - STIO-IN 2,5/3 OG
