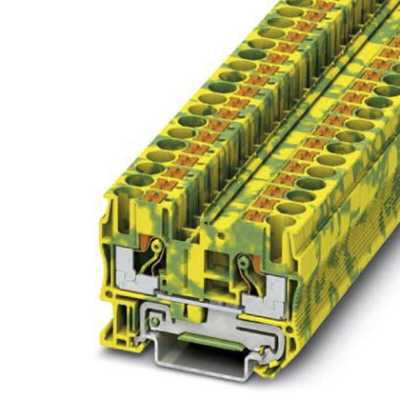

3211822, Phoenix Contact PT 6-PE Series Green, Yellow Earth Terminal Block, Single-Level, Push In Termination

PT Series Earth (Ground) Modular Terminal Blocks

A professional range of PT series earth DIN Rail terminal blocks from Phoenix Contact. These push in connection terminal blocks are characterised by the system features of the CLIPLINE complete system and by easy tool-free wiring of conductors with ferrules or solid conductors. The PT series terminal blocks are a compact design and front connection enabling a wide range of cable size wiring in confined space. All terminal blocks provide an addition test connection and are highly reliable and excellent quality.

Phoenix Contact Push-In Earth Terminal Block, 20 to 8AWG, 8kV Rated Surge Voltage - PT 6-PE - 3211822

Protect your industrial equipment from static electricity using this earth terminal block from Phoenix Contact. It uses a simple push-in termination method, so you can quickly connect wires without the need for specialised tools. Thanks to its compact dimensions of 57.7 (length) x 8.2 (width) x 42.2mm (height), the block is a good choice for use in areas where space is limited.
Signature green and yellow housing makes this unit easy to identify at a glance during maintenance and inspection. The rated surge voltage of 8kV means it can withstand powerful voltage spikes for increased electrical safety. You'll commonly find a terminal block like this one used in plant and mechanical engineering, as well as in the railway industry.

• ATEX certified for use in potentially explosive environments
• Light weight of 20.4g for reduced strain on equipment
• Flammability rating of UL94 V0 means burning will stop within 10 seconds for safety in the event of a fire
• Compatible with wires ranging in size from 20 to 8AWG (American Wire Gauge) for versatility

PT Series

Ground modular terminal block - PT 6-PE
