3213960, Phoenix Contact PTI 2.5-PE/L/TG Series Grey DIN Rail Terminal Block, 4mm², Triple-Level, Push In Termination

PTI Series Installation Level and Installation Ground Terminal Blocks

Installation Earth (Ground) Terminal Blocks: Double function shafts on all levels. The terminal blocks with knife disconnect zone in the upper level meet the safety requirement regarding individual circuit isolation of DIN VDE 0100-718

Installation Level Terminal Blocks: These terminal blocks with knife disconnect zone in the upper level meet the safety requirement regarding individual circuit isolation of DIN VDE 0100-718

803-7928 - Installation Earth (Ground)
803-7937 - Installation Earth (Ground)
803-7930 - Installation Level

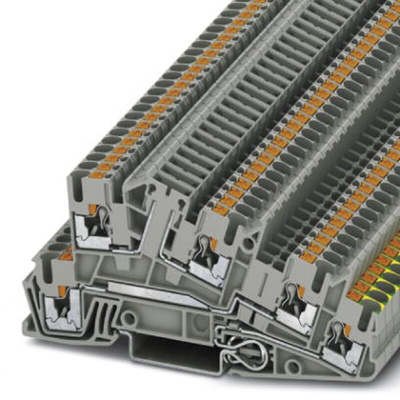

Phoenix Contact Ground Terminal Block, Triple Level, 0.14 to 4mm² Conductor CSA - PTI 2,5-PE/L/TG - 3213960

Depend on this earth terminal block from Phoenix Contact to safely discharge excess currents. By grounding your live wires, it removes the risk of harm or damage from leftover charge and enhances user safety. The unit terminates up to five connections to easily handle larger wiring setups. It's designed with three levels of connectivity to space out your conductors and give you easier access.
The block's push-in connection method means it uses cables fitted with ferrules for fast termination. Rated for currents up to 24A, it handles demanding electrical loads to suit intense applications. Highly effective polyamide insulation reduces the danger from overcurrents. Accepting wires with cross-sections between 0.14 and 4mm², this versatile device can serve many common appliances. A narrow 5.2mm width means the block packs neatly onto your DIN rail to maximise space.

• Shock-tested according to standard EN 50274, ensuring a safe component
• Mounts to DIN rails with both 7.5 and 15mm heights for versatile installation
• Meets UL94 V0 flammability standards to ensure high resistance to fire

PTI Series

Installation ground terminal block - PTI 2,5-PE/L/TG

Line Drawing - 3213960
