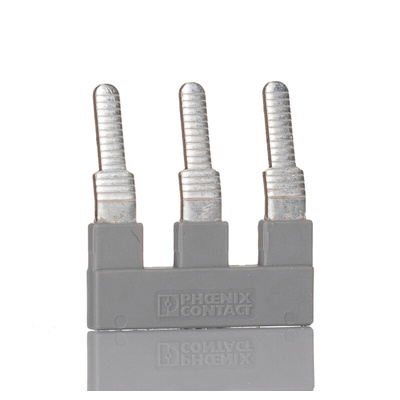

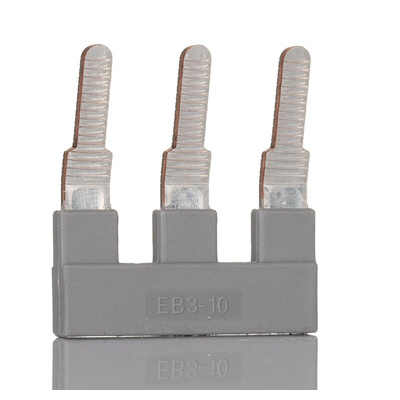

0203328, Phoenix Contact EB3-10 Series Jumper Bar for Use with Modular Terminal Block

Phoenix Contact Bridge Bar Isolator, 3 Positions, 10mm Pitch - EB 3-10 - 0203328

Build a bridge between your terminal blocks with this jumper bar from Phoenix Contact. It consists of three evenly-spaced prongs that let you connect multiple adjacent blocks with a 10mm pitch in one simple step. This means you can quickly adapt and isolate circuits and distribute power without a complicated wiring job.
You'll find this a handy accessory for use with modular terminal blocks from Phoenix Contact (such as 270-0410). The copper contacts ensure your connection is dependable, as they're highly conductive and won't corrode.
The top of the bridge bar is covered with PA insulation, making it easy to handle and touch-safe after installation. As PA is a hard-wearing material, you can expect a long service life from this component. Use it in control cabinets and electrical distribution systems in automation, building control and telecommunications applications.

Features & Benefits

• UL 94V-0 flammability rating means vertical burning stops inside ten seconds
• Operates safely between -60°C and +105°C, to ensure industrial installations are reliable
• Light weight of 4.9g helps take the pressure off wall-mounted installations

EB/EBS Series

Insertion bridge - EB 3-10 - 0203328

Line Drawing - 0203328
