0311087, Phoenix Contact URTK/S Series Grey Test Disconnect Terminal Block, Single-Level, Screw Termination

Test Disconnect Terminal

Professional range of Phoenix Contact test disconnect terminals from the URTK series.

Colour - Grey
Screw termination
Various wire sizes available

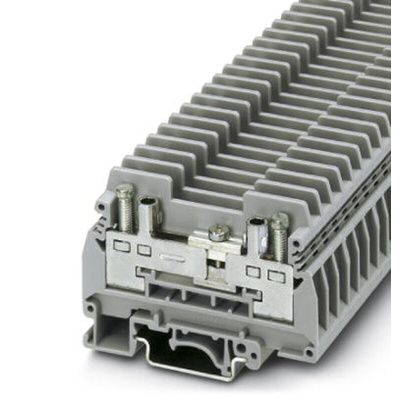

Phoenix Contact Test Disconnect Terminal Block - URTK/S - 0311087

The Phoenix Contact URTK/S (0311087) is a terminal block designed for straight-forward testing of current transformer secondary circuits. It enables you to measure circuits when there is no voltage. The URTK/S test disconnect terminal block enables safe operation and reliability.

Testing is made easy by two test sockets for 4mm plugs. The test sockets sit either side of the disconnect point which can be used to switch over to other terminal blocks. This test terminal block is compatible with wires of 20 to 10 AWG (0.5 mm to 10 mm²) and features a universal screw connection. The URTK/S modular terminal block is designed to be DIN rail mounted alongside other industrial control equipment. DIN rail mounting allows for quick installation into your control cabinet.

Choosing a Phoenix Contact test disconnect terminal block gives you a quality product and the reassurance of reliable testing.

Features & Benefits

• Two test sockets


• M4 screw connection


• Mounting type: NS 35/7,5, NS 35/15, NS 32


• Modular design


• Cross section 6 mm²


• High quality test disconnect terminal

We also offer a range of accessories for the URTK/S terminal block. Examples include the D-URTK/S-BEN end cover (803-8208) and the PSBJ-URTK/S RD female test connector (803-8258)

URTK/SS Series

Datasheet
