1202713, Phoenix Contact USA 10/4.6 Series Rail Adapter for Use with DIN Rail Terminal Blocks

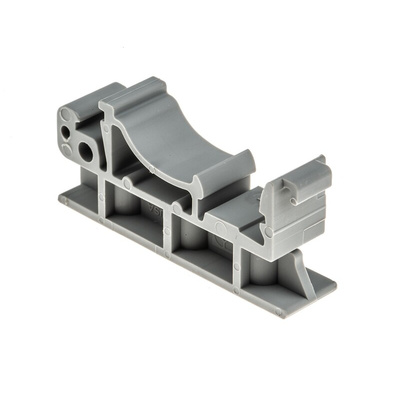

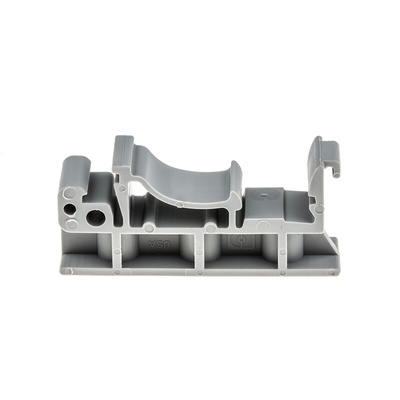

Phoenix Contact DIN Rail Adapter, 2.8g Weight, PA Construction - USA 10/4,6 - 1202713

Keen to set your electronic device on the right track? Use this DIN rail adapter from Phoenix Contact. It simply plugs onto a rail and is used as an interface to mount equipment that's not rail-compatible, ensuring there's less chance of damage to sensitive components. The unit has standard M5 screw holes, so attaching your component to it's fuss-free.
As the module is made from PA, there's minimal risk of electric shocks. This body material is also corrosion-resistant, so you can rely on the product to perform in humid locations. For safety, it meets UL 94-V2 flammability standards, so it's self-extinguishing and unlikely to contribute towards the spread of a fire.
This versatile adapter is compatible with most perforated and unperforated DIN rails. You'll find it used in industrial process control cabinets and manufacturing environments.

Features & Benefits

• Compatible with extreme settings, thanks to its wide operating temperature range between -60°C and +105°C
• Compact dimensions of 10 (W) x 42.6 (H) x 7.2mm (D) to maximise rail packing efficiency
• Light weight of 2.8g puts minimal strain on your circuit

Datasheet 1202713

Line Drawing - 1202713
