3022263, Phoenix Contact CLIPFIX 15 Series End Stop for Use with DIN Rail Terminal Blocks

8040157
Номер производителя: 3022263Производитель: Phoenix Contact
Цена за шт. (норма упаковки 50 шт)
273.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

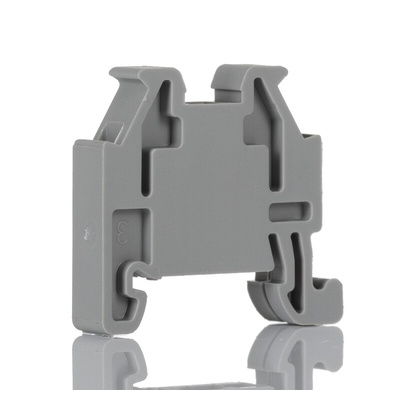

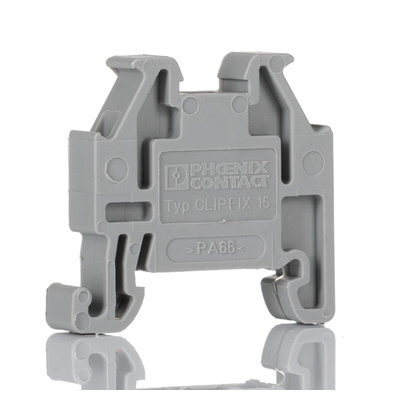

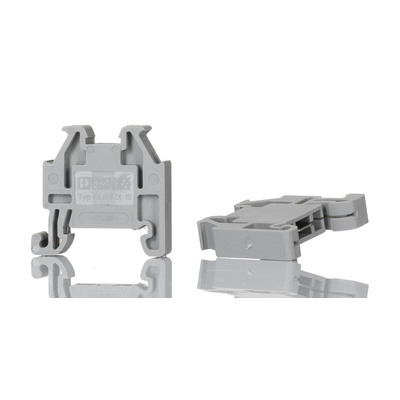

Phoenix Contact End Bracket, 5.2mm Width, PA Construction - CLIPFIX 15 - 3022263

Have terminal blocks been left loose on your rail? Grab this end bracket from Phoenix Contact to instantly get to grips with the problem. It snaps onto a standard top-hat DIN rail, whether it's perforated or not, so is compatible with most electrical installations and enables quick, tool-free fitting.
The mounting clip is designed to slot tightly over the surface of the rail lips, clamping onto the metal. This means it won't budge unless you intentionally remove it. For this reason, you can be sure you're terminal blocks are held securely.
The PA construction is strong and resistant to wear and corrosion, with good mechanical damping properties. This keeps the end bracket working without the need for maintenance, saving you time and effort during electrical servicing. You'll find end brackets like this one handy on distribution boards for industrial automation and building control applications.

Features & Benefits

• Width of 5.2mm to fit on compact rails
• Large surface area for easy labelling
• Flame-retardant material to boost fire safety
• Space for parking bridges and plugs, enabling quick system tests and adaptations
• Operates safely between -60°C and +105°C, to the handle extreme temperatures of manufacturing facilities

CLIPFIX

Техническая спецификация
pdfEnd clamp - CLIPFIX 15 - 3022263
pdfLine Drawing - 3022263
Для использования с:
DIN Rail Terminal Blocks
Материал:
Полиамид
Размеры контакта:
22 x 5.2 x 22.6mm
Серия:
CLIPFIX 15
Тип аксессуара:
End Stop
Тип монтажа:
Rail Mount
Цвет:
Серый
