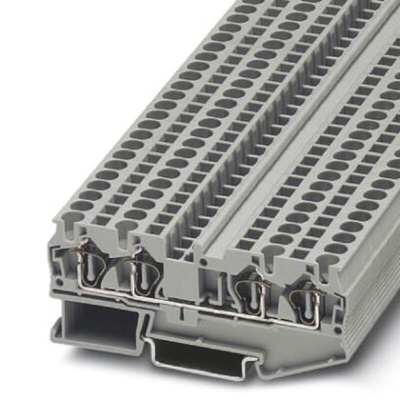

3031445, Phoenix Contact ST 4-QUATTRO Series Grey Feed Through Terminal Block, 4mm², Single-Level, Spring Clamp Termination,

Four-wire spring-loaded terminals ST...-QUATTRO

Four wires on one potential through twin connection
Usable as a compact power distributor
FBS plug-in bridge systems enable further power distribution variations

Approvals

Approvals: UL/CUL

Phoenix Contact Feed-Through Terminal Block, 0.5 to 4mm² Conductor CSA, 4 Connections - ST 4-QUATTRO - 3031445

Choose this feed-through terminal block from Phoenix Contact when you need to transfer charge across multiple cables. It supports up to four connections in two pairs to efficiently conduct large electrical potentials while protecting your appliances. With its spring-cage design, the device ensures a reliable link between cables to maintain the performance of your system. By using wires fitted with ferrules, the unit creates semi-permanent connections that you can easily adjust later.
As this block accepts wires with cross-sections between 0.5 and 4mm², it provides a hassle-free way to connect devices with different inputs. With a compact width of 6.2mm, it enhances the packing density of your DIN rail. A 40A current rating makes the unit ideal for carrying the considerable loads found in demanding electrical setups. Compatibility with both 7.5 and 15mm-high DIN rails gives you flexibility when mounting.

• Insulating polyamide housing protects against excess currents and short-circuits to ensure your safety
• ATEX-certified to indicate suitability for hazardous applications
• Dedicated space for numbered labelling of conductors for easier wire identification

ST 4-QUATTRO

Instruction Sheet - 3031445

Line Drawing - 3031445
