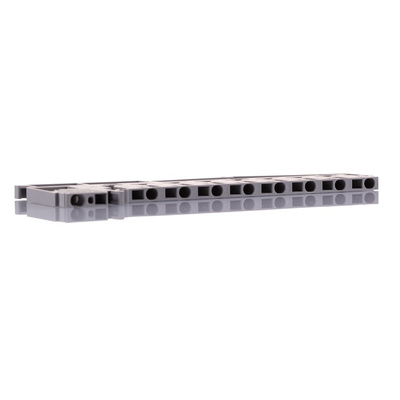

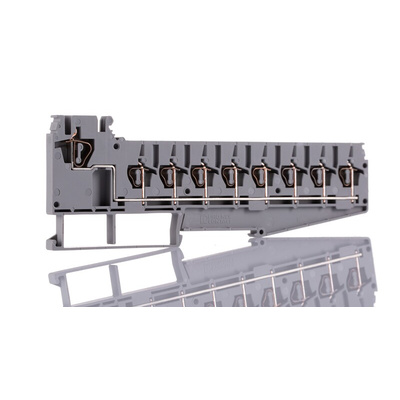

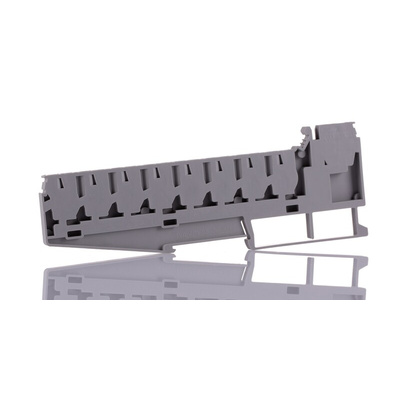

3031047, Phoenix Contact ZPV 1.5 Series Grey DIN Rail Terminal Block, 0.14 → 4mm², 3-Level, Spring Cage Termination

Phoenix Contact DIN Rail Terminal Block, 6kV Rated Surge Voltage, 0.56W Maximum Power Loss - ZPV 1,5/2,5 (8/1) - 3031047

Safely distribute power to components on your industrial machinery with this DIN rail terminal block from Phoenix Contact. It's a multi-tasker with eight contact points, so you can manage multiple circuits at the same time for versatility. Thanks to its double-row construction, it won't take up a lot of space on your DIN rail, so it's the right fit for tight setups. With an open side panel, it's easy to link it to other terminal blocks for flexibility.
This unit takes high-current-consuming applications in its stride, thanks to a 24A current rating. PA housing offers dependable resistance to impact and abrasion – put it to the test in harsh environments. In the event of a fire, the block stops burning in 10 seconds or less, so it's a safe choice when you're working in sensitive areas. Use it to keep your wiring neat as a pin in production and automation equipment.

• Wide operating temperature range between -60°C and +105°C ideally suits demanding environments
• Voltage rating of 500V for use in low-voltage settings
• RoHS certification indicates that it only contains trace amounts of hazardous substances

Potential distributors - ZPV 1,5/2,5 (8/1) - 3031047

Line Drawing - 3031047
