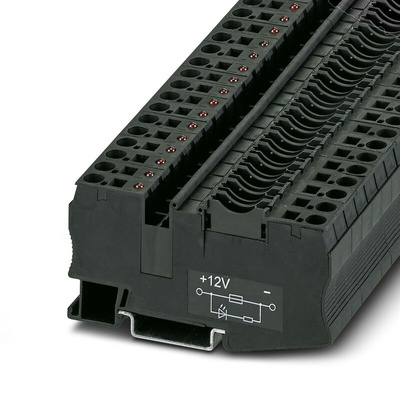

3036495, Phoenix Contact ST Series Black Fused DIN Rail Terminal, 4mm², 1-Level, Spring Clamp Termination, Fused, Клеммная колодка

ST 4-FSI/C DIN Rail Terminal Blocks - Phoenix Contact

The ST 4-FSI/C range from Phoenix Contact are DIN rail, spring-cage terminal blocks that feature a C type fuse. This range of DIN rail, fused terminal blocks form a tight connection to your wire thanks to the spring-cage technology, it also means an effortless install! Simply push-in your wire. Not to mention, the fuse in this terminal block is a flat fuse and helps add another level of protection. DIN rails NS 35/7.5 and NS 35/15 are supported for the ST 4-FSI/C range of terminal blocks and the blocks have a nominal current of 30 A with a nominal voltage of 400 V.

The housing on these fused terminal blocks is made from a durable polyamide material and the contacts are copper with a plating. These devices accept 28-10 AWG and have a cross-section of 0.08 mm² - 6 mm².

Features and benefits:

• Fused for added protection


• The ST 4-FSI/C fuse terminal block accommodates flat-type fuses according to ISO/DIS 8820/DIN 72581-3 or the TCP .../DC32V thermal miniature circuit breaker as the fuse element


• Versions with LED for easily indicating a fuse that has been blown


• Fits on an NS 35/7.5 and NS35/15 DIN rail


• Operating temperatures of -60°C to 85°C


• Spring-loaded fuse terminals adopt the functional operation of the fuse holder and potential distribution

Complete Line:

The ST series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

Phoenix Contact Fused DIN Rail Terminal, Polyamide, Spring Clamp Termination - 3036495

This fused DIN rail terminal by Phoenix Contact is a reliable and efficient solution for various applications in automation, electronics, electrical, and mechanical industries. With a voltage rating of 250V and a current rating of 10A, this terminal block is designed to ensure optimal performance and safety in your projects.

Features & Benefits

• Spring clamp termination method for easy and secure wiring connections
• Made of durable polyamide material for longevity and reliability
• DIN rail mountable, ideal for streamlined installation and maintenance
• Accommodates wire gauge sizes from 28 to 10 AWG, offering flexibility in compatibility
• Fused design provides additional protection for your circuits

Applications

• Ideal for use in control panels, power distribution systems, and industrial machinery
• Suitable for signal and power applications in various automation projects
• Perfect for use in electrical enclosures and junction boxes for secure wire connections

Can it accommodate a wide range of wire gauges?

Yes, the Phoenix Contact fused DIN rail terminal can accommodate wire gauges ranging from 28 to 10 AWG.

Will it provide additional protection for circuits?

Yes, the fused design of this terminal block ensures enhanced protection for your circuits.

Is it suitable for automation projects?

Yes, this terminal block is perfect for use in automation projects in various industries.

Can it be mounted on DIN rails easily?

Yes, the DIN rail mountable design of this terminal block allows for easy and secure installation.

Will it ensure secure and reliable wire connections?

The fused DIN rail terminal is designed for secure and reliable wire connections, making it an ideal choice for your projects.

Datasheet

Line Drawing - 3036495
