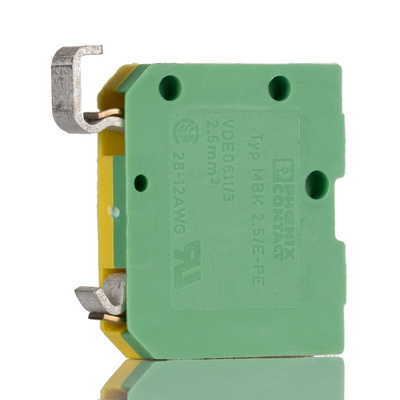

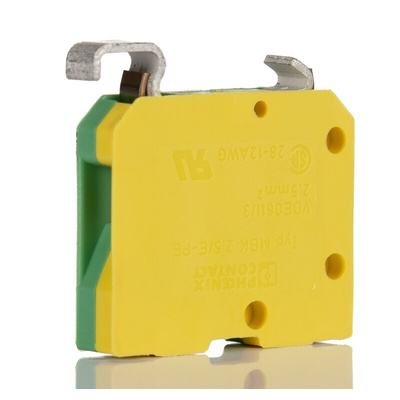

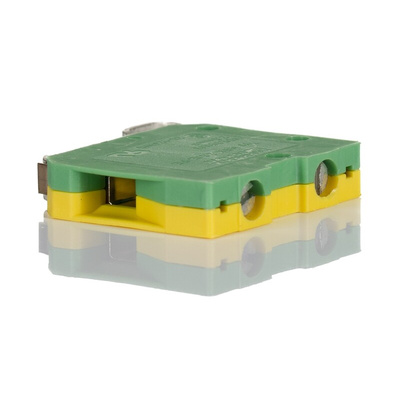

1402788, Phoenix Contact MBK 2.5/E-PE Series Green/Yellow Earth Terminal Block, 2.5mm², Single-Level, Screw Termination

Phoenix Contact Earth Terminal Block, 5.22g Weight, 4kV Rated Surge Voltage - MBK 2,5/E-PE - 1402788

In need of a simple way to keep your system grounded? Choose this earth terminal block from Phoenix Contact. It's ideal for protecting your electrical setup against faults thanks to its rated surge voltage of 4kV. The PA insulation is resistant to heat, chemicals and abrasion, so it stands its ground in tough industrial environments.
Thanks to its compact dimensions of 26.5 (L) x 5.2 (W) x 26.5mm (H), this small but mighty unit fits snugly onto 15mm DIN rails for use in tight configurations. For increased safety, it's self-extinguishing, so it won't go up in flames in the event of a fire. As it accommodates wires ranging in size from 24 to 14AWG, this is a versatile choice that handles commonly used conductors.

Features & Benefits

• Light weight of 5.22g minimises strain on your rail
• Broad operating temperature range between -60°C and +105°C for use in extreme environments
• Screw connection for secure wiring without the need for complex tools
• Green and yellow housing means you can identify it as an earth unit in a flash

MBK Series

Mini ground terminal block - MBK 2,5/E-PE - 1402788

Line Drawing - 1402788
