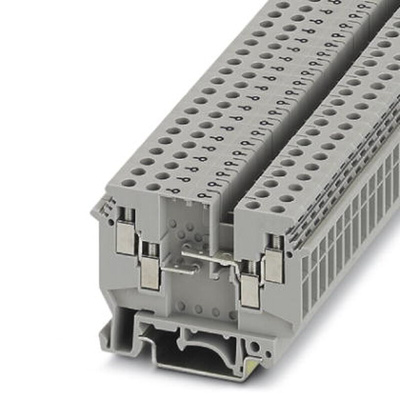

2775207, Phoenix Contact UDK 4-DUR Series Grey DIN Rail Terminal Block, 0.2 → 4mm², Single-Level

Phoenix Contact DIN Rail Terminal Block, 4 Connections, M3 Screw Thread - UDK 4-DUR - 2775207

Get wired up in a jiffy with this DIN rail terminal block from Phoenix Contact. It lets you safely connect two or more wires on a DIN rail to create a complete circuit. This component is a cinch to use as you simply feed your wires through opposite ports and screw them into place, so there's no need for special tools.
This terminal block is housed in polyamide insulating material, which is wear-resistant for a longer service life. A broad operating temperature range between -60°C and +105°C means this unit can handle tough conditions. At 63.5mm long, it's also compact enough to fit in busy enclosures. You'll find this versatile component used in various applications, from HVAC systems to lighting controls and energy regulation equipment.

Features & Benefits

• 0.5 to 0.6Nm tightening torque, so it's easy to connect your conductors by hand
• Nominal voltage rating of 630V indicates it's safe to use in high-voltage electrical systems
• Quick and convenient to mount by clipping onto a DIN rail
• Protected against voltage surges up to 8kV for added electrical safety

Feed-through terminal block - UDK 4-DUR

Line Drawing - 2775207
