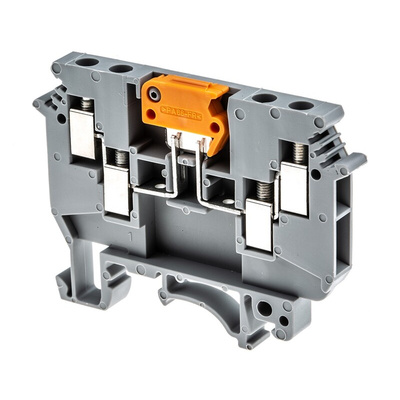

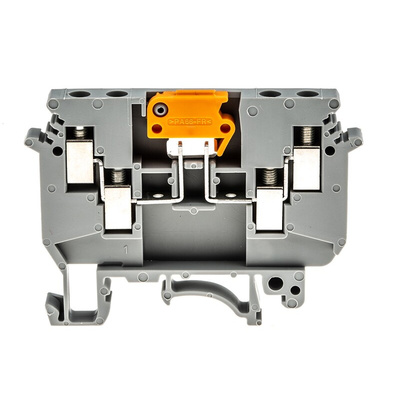

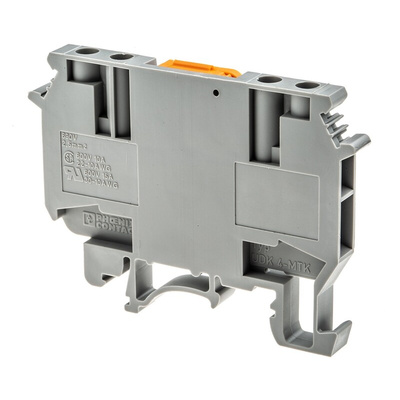

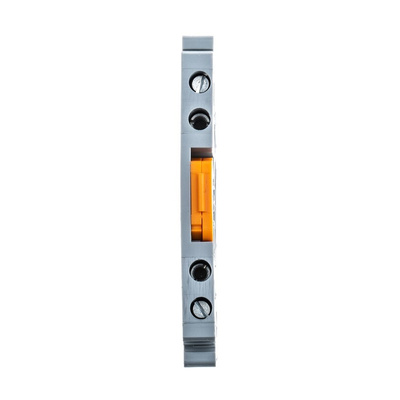

2775210, Phoenix Contact UDK 4-MTK-P/P Series Grey Feed Through Terminal Block, 4mm², Single-Level, Screw Termination

UDK double terminals

With multi-conductor terminal blocks from Phoenix Contact you can connect up to four conductors with individual wiring at each terminal point.

Features and Benefits

• Potential distribution via two terminal points on each side of the connection
• Bridging option at the terminal centre

Approvals

UL, CUL, CSA

Phoenix Contact Feed-Through Terminal Block, 63.5mm Length - UDK 4-MTK-P/P - 2775210

Clip this terminal block from Phoenix Contact onto your DIN rail to safely connect your electrical equipment. Designed for use in electrical cabinets and industrial racks, this insulating polyamide component prevents current surges and short circuits while letting you connect wiring between assembled control devices. Multi-conductor blocks mean you can link up to four connectors with individual wiring at each terminal.
This feed-through terminal block is compact and can be used in small spaces. It features a colour-coded lever that clearly indicates when the circuit is open or closed, making it simple to isolate during troubleshooting and maintenance. The block's screw termination method uses a clamp to fasten conductors and cables securely, which prevents wires from coming loose.
You'll find components like this one widely used in a range of electrical systems including power supplies and telecommunications equipment.

• Dimensions of 63.5mm (length), 6.2mm (width), 1.5mm (end cover width) for use in tightly packed setups
• Light weight of 16.3g
• Wide operating temperature range of -60°C to +105°C for use in demanding industrial settings
• CSA (Canadian Standards Association) certified indicating electrical component safety
• UL (Underwriters Laboratories) 94 V-2 certification for fire safety, which means it stops burning within 30 seconds.
