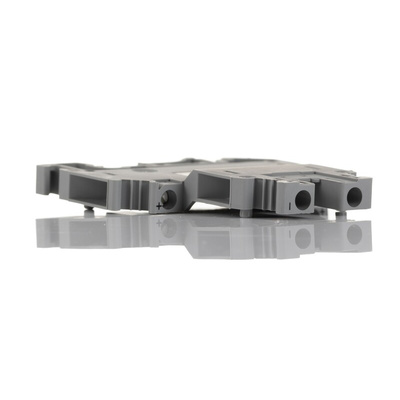

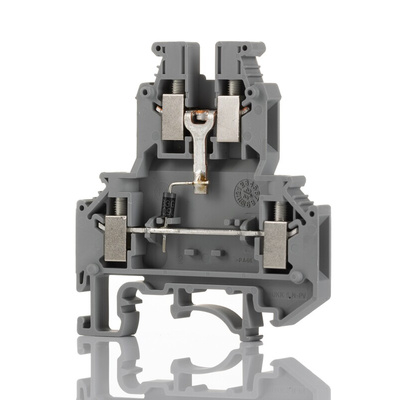

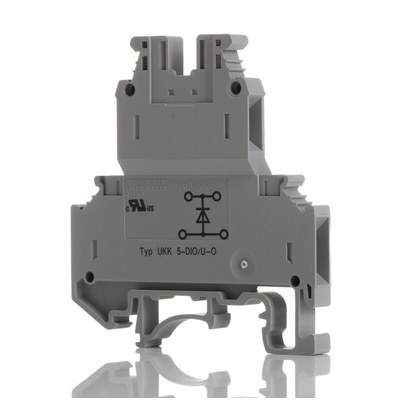

2791032, Phoenix Contact UKK 5-DIO/U-O Series Grey DIN Rail Terminal Block, 0.2 → 4mm², Double-Level

Phoenix Contact DIN Rail Terminal Block, 32A Nominal Current Rating, 8mm Stripping Length - UKK 5-DIO/U-O - 2791032

Need to connect two or more wires safely and speedily? Choose this DIN rail terminal block from Phoenix Contact to get the job done neatly. Creating a circuit's a piece of cake – just insert the first wire into one port and the second wire into the one opposite. You can secure the wires with standard M3-threaded screws, so there's no need for special tools.
This terminal block is a cinch to mount as you just snap it onto your DIN rail. Thanks to its heat-resistant polyamide housing, it can work safely in temperatures up to +105°C, so it's suitable for harsh industrial settings. You'll find this handy component used across industry, from automation networks to signalling systems and telecommunications equipment.

Features & Benefits

• Polyamide insulation is wear-resistant so it's suitable for heavy-duty applications
• Nominal voltage rating of 500V means it's safe to use in high-voltage electrical systems
• Protected against sudden voltage surges up to 6kV for electrical safety
• Low weight of 16.41g means it won't put pressure on your DIN rail
• Tightening torque of 0.6 to 0.8Nm, so it's simple to set up by hand

Component terminal block - UKK 5-DIO/U-O

Line Drawing - 2791032
