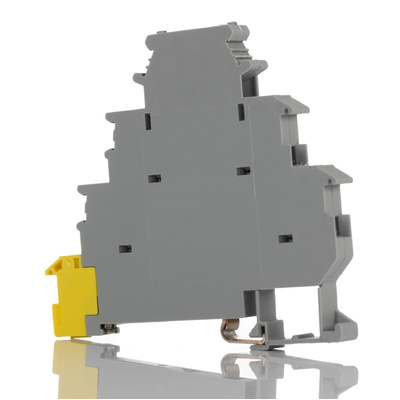

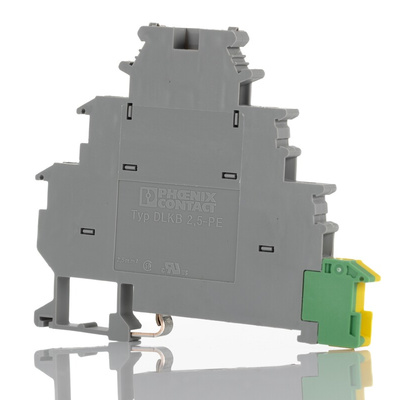

3011038, Phoenix Contact DLKB 2.5-PE Series Feed Through Terminal Block, 2.5mm², Screw Termination

Phoenix Contact Feed-Through Terminal Block, 24A Current Rating, 24 to 12AWG - DLKB 2,5-PE - 3011038

Need a safe way to connect a power supply to your electric motor? You're on solid ground with this feed-through terminal block from Phoenix Contact. It has a PE foot on the bottom row to discharge excess current harmlessly in the event of fault. This safeguards users from electric shock and protects equipment from damage. For easy identification as a grounding element, the row is coloured green and yellow.
The four-level construction means you can join multiple circuits in one unit, so this product's ideal for running power to three-phase electric motors. Handy screw terminals make set-up quick and easy without the need for special tools.
For flexibility and hassle-free wiring, you can easily bridge this unit with other terminal blocks using an EB series jumper bar (such as 418-9797 or 804-0699).

• Wide operating temperature range between -60°C and +105°C so it's reliable in challenging conditions
• DIN rail-mounted for simple installation
• Self-extinguishing in under 10 seconds to help prevent the spread of fire
• Tough polyamide housing is resistant to wear and impact for a long service life

Protective conductor double-level terminal block - DLKB 2,5-PE - 3011038

Line Drawing - 3011038
