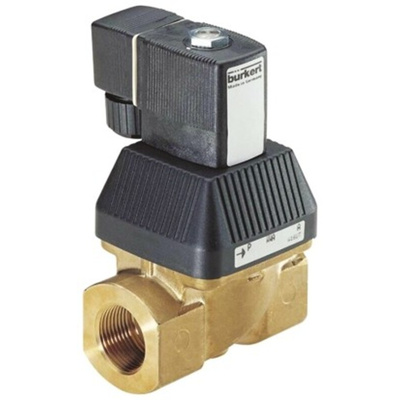

221600, Burkert Solenoid Valve 93970005, 2 port , NC, 110 V ac, 3/8in, Клапан

8041927
Номер производителя: 221600Производитель: Burkert
Цена за шт.
19323.00 руб. (С НДС) *
Количество 5+
Цена 18732.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DS6213-EV Series 2/2 Brass Solenoid valve

Burkerts new range of 2 way normally closed solenoid valves. Manufactured from brass and designed for use with water and inert liquids and gases. A soft mechanical coupling between the main piston and pilot armature aids smooth operation and a precision engineered main body path helps ensure quiet, water hammer free operation.
Suitable for a diverse range of applications including compressed air and vacuum systems, heating and refrigeration, water treatment and swimming pool technology. Compact size to aid installation when space is limited

0-10 bar operating pressure
0.1-4 second response time
Opens without differential pressure
Minimum pressure differential of 0.5 bar for full opening
High flow rate
Sealed coil
IP65 Rating

Note

Due to their internal complexity these valves can only be used with clean neutral media
Electrical connector can be ordered separately

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Техническая спецификация
pdfBurkert Solenoid Valves Product Overview
pdfEV Type Series Brochure
pdf6213EV Standard 2/2-way Solenoid Valve for Liquids and Gases Data Sheet
Servo Assist:
Да
Диапазон рабочих температур:
0 → +120 Epoxy Coil (FKM) °C, 0 → +90 Polyamide Coil (FKM) °C, -10 → +80 (NBR) °C, -30 → +100 Epoxy Coil (EPDM) °C, -30 → +90 Polyamide Coil (EPDM) °C
Количество портов:
2
Корпус - материал:
Латунь, Никелированная латунь, Нержавеющая сталь
Коэффициент расхода Kv:
1.9м³/ч
Максимальное время закрытия:
4s
Максимальное время открытия:
4s
Максимальное рабочее давление:
10 бар
Напряжение питания:
110 В перем. тока
Операция:
Pilot
Отверстие с диаметром:
10мм
По умолчанию положение клапана:
NC
Подключение тип:
Female
Подходят применения:
Gas, Air, Vacuum Applications
Рабочая температура - максимальная:
+100 °C, +120 °C, +80 °C, +90 °C
Рабочая температура - минимальная:
0 °C, -10 °C, -30 °C
Размер соединения:
3/8in
Связь:
3/8 in G Female
Серия:
221
Стандарт резьбы или тип соединения:
G
Тип:
2/2
