221602, Burkert Solenoid Valve 93970010, 2 port , NC, 24 V dc, 1/2in, Клапан

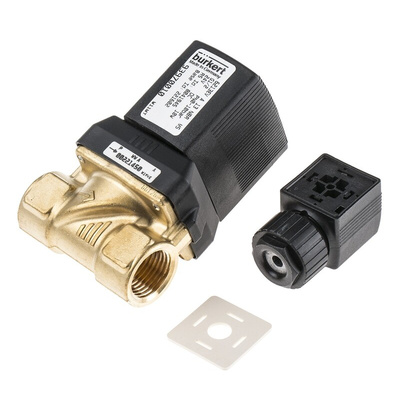

Burkert Solenoid Valve

The Burkert 221 series 1/2inG female solenoid valve has a supply voltage of 24VDC. This 2-port NC position valve has soft mechanical coupling between the main piston and pilot armature aids smooth operation and a precision-engineered main body path helps ensure quiet water hammer free operation. It is manufactured from brass and designed for use with water and inert liquids and gases.
Note:
Due to their internal complexity, these valves can only be used with clean neutral media Electrical connector can be ordered separately

Features and Benefits

Maximum working pressure is 10bar
Compact size to aid installation when space is limited
Coupled spring diaphragm system opened without differential pressure
Flow factor(Kv) is 3.6m³/h
Orifice diameter is 13mm
Flow-optimized housing and diaphragm geometry for high flow
Operating temperature is between -10°C and 80°C
Power consumption is 10W
Sealed coil and high flow rate

Applications

Compressed air and vacuum systems
Heating and refrigeration
Water treatment and swimming pool technology

Certifications

IP65 rated
