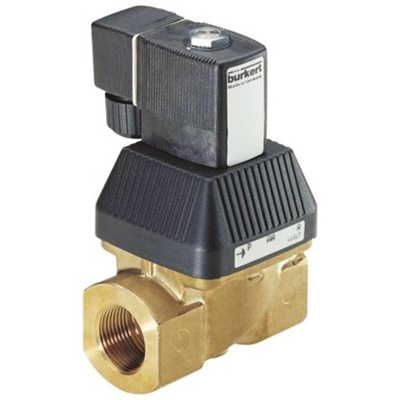

221634, Burkert Solenoid Valve 93970019, 2 port , NC, 24 V dc, 1in, Клапан

8041973
Номер производителя: 221634Производитель: Burkert
Цена за шт.
35301.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Burkert Solenoid Valve

The Burkert 221 series 1inG female solenoid valve has a supply voltage of 24VDC. This 2-port NC position valve has soft mechanical coupling between the main piston and pilot armature aids smooth operation and a precision-engineered main body path helps ensure quiet water hammer free operation. It is manufactured from brass and designed for use with water and inert liquids and gases.
Note:
Due to their internal complexity, these valves can only be used with clean neutral media Electrical connector can be ordered separately
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the operation of the valve when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Features and Benefits

Maximum working pressure is 10bar
Compact size to aid installation when space is limited
Coupled spring diaphragm system opened without differential pressure
Flow factor(Kv) is 8.3m³/h
Orifice diameter is 20mm
Flow-optimized housing and diaphragm geometry for high flow
Operating temperature is between -10°C and 80°C
Power consumption is 10W
Sealed coil and high flow rate

Applications

Compressed air and vacuum systems
Heating and refrigeration
Water treatment and swimming pool technology

Certifications

IP65 rated

Техническая спецификация
pdfBurkert Solenoid Valves Product Overview
pdfEV Type Series Brochure
pdf6213EV Standard 2/2-way Solenoid Valve for Liquids and Gases Data Sheet
Servo Assist:
Да
Диапазон рабочих температур:
-10 → +80 °C
Количество портов:
2
Корпус - материал:
Латунь
Коэффициент расхода Kv:
8.3м³/ч
Максимальное рабочее давление:
10 бар
Напряжение питания:
24 В пост. тока
Операция:
Pilot
Отверстие с диаметром:
20мм
По умолчанию положение клапана:
NC
Подключение тип:
Female
Подходят применения:
Liquid
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-10°C
Размер соединения:
1in
Связь:
1 in G Female
Серия:
221
Стандарт резьбы или тип соединения:
G
Тип:
2/2
