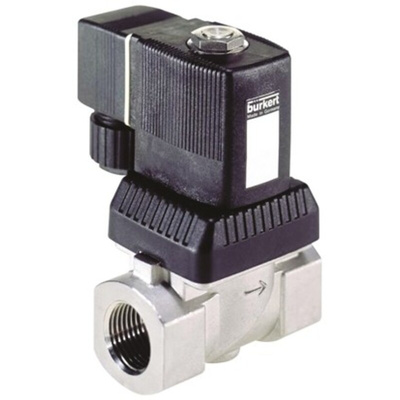

Burkert Solenoid Valve 222122, 2 port(s) , NC, 24 V dc, 3/4in, Клапан

Burkert Solenoid Valve

The Burkert 222 series 3/4inG female solenoid valve has a supply voltage of 24VDC. This 2-port valve has a soft mechanical coupling between the main piston. The pilot armature aids smooth operation and precision-engineered main body path helps to ensure quiet, water hammer free operation. It is made from stainless steel and designed for use with water and inert liquids and gases.
Note:
Due to their internal complexity, these valves can only be used with clean neutral media

Features and Benefits

Flow factor (Kv) is 8.3m³/h
Maximum working pressure is 10bar
Power consumption is 10W
Servo-assisted diaphragm with diameter of up to DN40
Coupled spring diaphragm system opened without differential pressure
Sealed coil and high flow rate
Flow-optimized housing and diaphragm geometry for high flow
Compact size to aid installation when space is limited
Operating temperature ranges between -10°C and 80°C

Applications

Compressed air and vacuum systems
Heating and refrigeration
Water treatment and swimming pool technology

Certifications

IP65 rated
