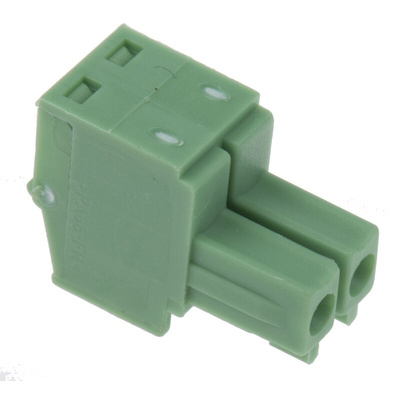

1840366, Phoenix Contact 3.5mm Pitch 2 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact PCB Header, Single Level, 2 Positions - MC 1,5/ 2-ST-3,5 - 1840366

Need to attach wires directly to your circuit board? Turn to this PCB header from Phoenix Contact. As it has two contacts, you can use it to connect two conductors at once. A compact pitch size of 3.5mm means it comfortably handles smaller wires. The copper alloy contacts have good electrical conductivity to help ensure reliable current transmissions to your board. For durability, the surface of these contacts is plated in hot-dipped tin which resists damage from impacts and corrosion.
As the unit is encased in an insulated polyamide housing, it protects you from electric shocks. This casing is also heat-resistant, so you can rest assured the internal workings stay cool in harsh conditions. A wide operating temperature range between -40°C and +100°C means you can safely use this header in demanding environments.

Features & Benefits

• Flammability rating of UL94 V0 indicates burning will stop in 10 seconds in the event of a fire
• Current rating of 8A for use in low-power devices
• Straight body orientation for convenient front-facing mounting
• IP20-rated, so is touch-proof and resistant to dust or objects that are over 12mm in size

Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks

Contains SVHC - Lead - CAS No. 7439-92-1

Datasheet 1840366

Datasheet 1840366

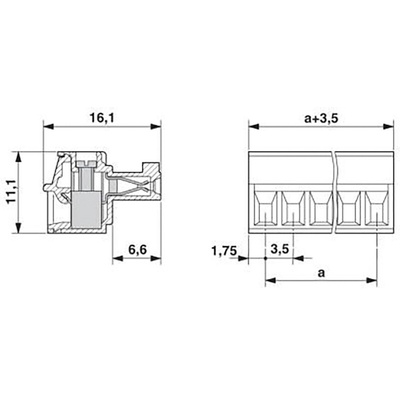

Line Drawing - 1840366
