1857906, Phoenix Contact 3.81mm Pitch 4 Way Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination

8042403
Номер производителя: 1857906Производитель: Phoenix Contact
Цена за шт. (норма упаковки 50 шт)
1482.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

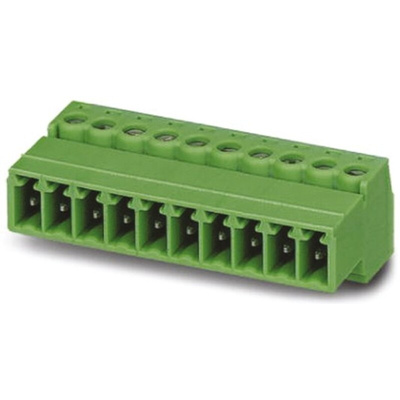

Phoenix Contact MINI COMBICON IMC 1,5 3.81mm Pitch Mini Plug-In Inverted Terminal Block Plugs

MINI COMBICON IMC 1,5 3.81mm pitch mini plug-in cable mount inverted terminal block plugs with a 0.14 to 1.5mm2 screw connection and 180° wire entry. These MINI COMBICON IMC 3.81mm pitch mini plug-in free hanging terminal block plugs are for use with IMC 1,5 headers and MC 1,5 plugs for cable mount applications.
Stock numbers with part number prefix 1858 (IMC 1,5 - STGF) also have a threaded mounting flange
For mating header connectors see stock numbers 804-5026, 804-2484 and 804-2336 typically
For screwdriver see stock number 390-9663
For marker labels see stock number 648-5508
For cable housing see stock number 742-7409

Phoenix Contact Pluggable Terminal Block, Male, 8A Current Rating - IMC 1.5/4-ST-3.81 - 1857906

This pluggable terminal block from Phoenix Contact expands the connectivity of your PCB system. It has four contact positions to work with four-pin socket connectors (804-2484), letting you make fast connections for efficient wiring. With its tin-plated copper alloy contacts, the plug makes effective power connections between your devices to keep them working efficiently. It accepts solid and stranded cable cores with cross-sections from 0.14 to 1.5mm², so it has the versatility to work across many common applications.
As indicated by its 8A current rating, the module manages large electrical loads typical of intense data transfer applications. It has a low 3.81mm pitch, meaning it easily fits onto busy circuit boards. The block's inverted plug design means its housing covers its sensitive contacts. This protects your connections against impacts for long-lasting connectivity.

• Durable PA housing for wear-resistance
• 2.5kV surge voltage rating signals protection against power supply faults
• Works between operating temperatures of -40°C and +100°C to suit harsh conditions
• V0 flammability rating by UL 94 standards indicates resistance to burning

Техническая спецификация
pdfPrinted-circuit board connector - IMC 1,5/ 4-ST-3,81
pdfLine Drawing - 1857906
Кол-во контактов:
4
Количество рядов:
1
Концевая заделка:
Винт
Материал:
Полиамид
Номинал тока:
8A
Номинальное напряжение:
320 В
Ориентация корпуса:
Прямой
Серия:
IMC 1.5/4-ST-3.81
Тип монтажа:
Кабельное крепление
Тип съемного клеммного блока:
Inverted Plug
Цвет:
Зеленый
Шаг:
3.81мм
