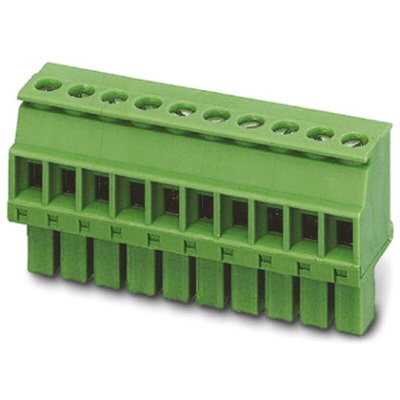

1827059, Phoenix Contact 3.81mm Pitch 10 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

8042456
Номер производителя: 1827059Производитель: Phoenix Contact
Цена за шт.
3833.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact MINI COMBICON MCVR & MCVW 3.81mm Plug-In Terminal Block Connectors

MINI COMBICON MCVR & MCVW 3.81mm pitch cable mount plug-in terminal block connectors with a 0.14 - 1.5mm2 screw connection and 90° plug-in direction.
MCVR series terminal block connectors (part numbers prefixed with 18271, 18272, 18283, 18284) have the conductor entry facing the coding side. Part numbers prefixed with 18283, 18284 also have a screw flange.
MCVW series terminal block connectors (part numbers prefixed 18269, 18270, 18271, 18284, 18285, 18286) have the conductor entry facing the rippled side. Part numbers prefixed with 18284, 18285, 18286 also have a screw flange.
For marker label see stock number 648-5508
For screwdriver see stock number 390-9663

Phoenix Contact Pluggable Terminal Block, 10 Way, 8A Current Rating - MCVW 1.5/10-ST-3.81 - 1827059

Looking for a quick and simple way to terminate and attach leads? Use this Phoenix Contact pluggable terminal block. It comes with ten 3.81mm pins so makes multiple connections. As it accommodates 28 to 16AWG wires, it's a versatile option.
A modular design makes it possible to link this item to other blocks from the same series to make extended electrical junctions. Easy screw termination ensures the unit is firmly attached to your PCB, so you get reliable signal transmissions. A tough polyamide casing insulates live components to help prevent electric shocks and protect delicate connections. Thanks to compact dimensions of 38.89 (length) x 10.4 (width) x 19.1mm (depth), the block takes up minimal board space.
The unit's green colour-coding makes it easier to distinguish between different links when performing repairs and maintenance on your PCBs and control panels.

• Light weight at only 8.28g to minimise strain on PCBs
• RoHS compliance assures you the unit contains negligible amounts of any harmful substances
• CSA and UL certifications indicate it has passed quality and safety testing for use in Canada and the United States
• UL94V-0 rating means it won't burn for longer than 10 seconds for improved fire safety

Техническая спецификация
pdfMCVW 1,5/10-ST-3,81
pdfDimension Sheet - 1827059
pdfCatalogue - Terminal Block
Кол-во контактов:
10
Количество рядов:
1
Концевая заделка:
Винт
Материал:
PA (Insulate)
Номинал тока:
8A
Номинальное напряжение:
160 В
Ориентация корпуса:
Прямой
Серия:
MCVW 1.5/10-ST-3.81
Тип монтажа:
Кабельное крепление
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
3.81мм
