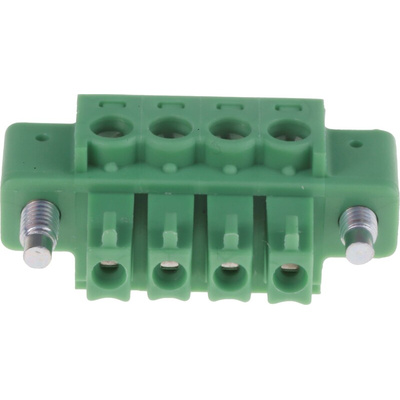

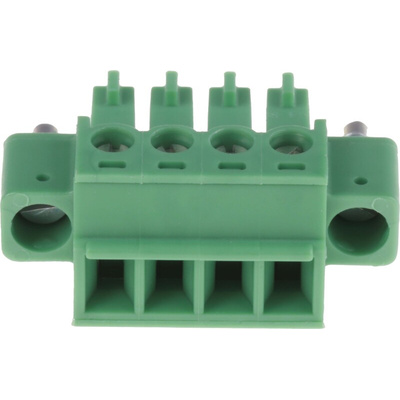

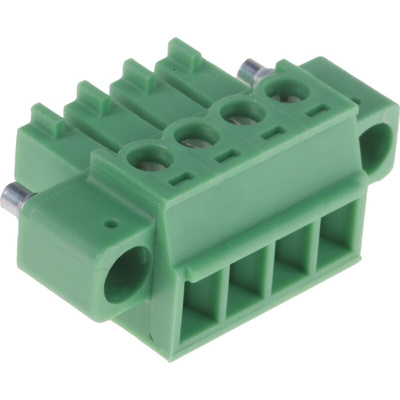

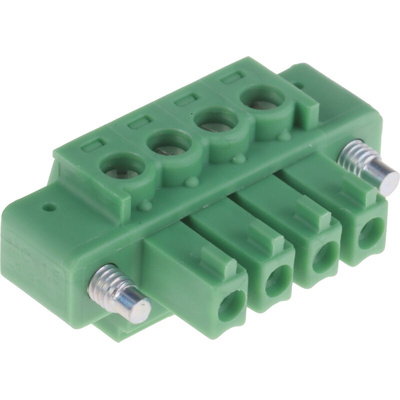

1827729, Phoenix Contact 3.81mm Pitch 4 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact MINI COMBICON MC 3.81mm Pitch Terminal Block Plug Connectors

Phoenix brings you a series of MC PCB terminal connectors. Featuring a 3.81mm pitch and a well-known name, these connectors are brilliant. They allow a wire from 0.14mm² up to 1.5mm² with a simple screw connection with a tension sleeve and horizontal wire entry. Each connector can have a maximum of two connections with a rated current of 8A.

These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.

MINI COMBICON MC 3.81mm Features and Benefits:

•Maximum reliability due to high quality materials
•3.81mm pitch
•Screw connection with termination device to help prevent loosening of wire in high vibration
•Copper alloy contact material with tin plated terminal points
•-40°c to +70°c operating temperatures
•Height of only 8mm above the board for a small compact fit

These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “125-3078”

Other accessories:
•Marker cards – 648-5508
•Cable housing – 742-7409

Phoenix Contact PCB Header, 3.81mm Pitch, 4 Ways - MC 1.5/4-STF-3.81 - 1827729

Easily establish multiple electrical links using a single cable or connection block with this Phoenix Contact miniature PCB (printed circuit board) header. Polyamide material provides efficient insulation against electric shocks and short circuits, making it safe for industrial use. Its impressive operating temperature range of -40°C to +70°C means you can use it in extreme environments.
Install this header easily by soldering it onto your PCB. Thanks to a screw-type termination method, you can connect your wires securely, preventing partial contact and other electrical faults. This also reduces the amount of heat that dissipates during operation, ensuring a longer service life.
With a compact design making it suitable for use in tight spots, this PCB header is extremely useful for a range of applications, including in the electrical and automation industries.

• Green polyamide housing for durability and longevity
• Standard current rating of 8A and voltage rating of 320V
• Complies with IEC (International Electrotechnical Commission) 60512-9-1 and IEC 60512-5-1 standards for durability and heat resistance
• UL (Underwriters Laboratories) 94 V-0 flammability rating means it stops burning within 10 seconds if there's a fire

MC 1,5/ 4-STF-3,81
