1827787, Phoenix Contact 3.81mm Pitch 10 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact MINI COMBICON MC 3.81mm Pitch Terminal Block Plug Connectors

Phoenix brings you a series of MC PCB terminal connectors. Featuring a 3.81mm pitch and a well-known name, these connectors are brilliant. They allow a wire from 0.14mm² up to 1.5mm² with a simple screw connection with a tension sleeve and horizontal wire entry. Each connector can have a maximum of two connections with a rated current of 8A.

These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.

MINI COMBICON MC 3.81mm Features and Benefits:

•Maximum reliability due to high quality materials
•3.81mm pitch
•Screw connection with termination device to help prevent loosening of wire in high vibration
•Copper alloy contact material with tin plated terminal points
•-40°c to +70°c operating temperatures
•Height of only 8mm above the board for a small compact fit

These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “125-3078”

Other accessories:
•Marker cards – 648-5508
•Cable housing – 742-7409

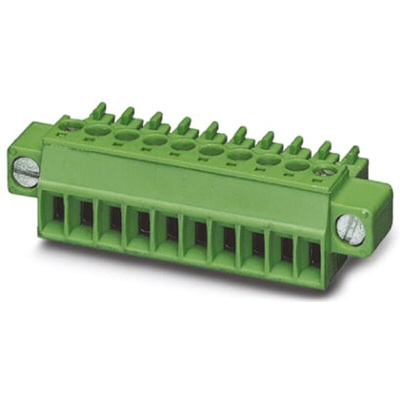

Phoenix Contact 10-Pin Pluggable Terminal Block, 3.81 mm Pitch - MC 1.5/10-STF-3.81 - 1827787

This Phoenix Contact terminal block allows you to safely transfer data, signals and power directly to your printed circuit board (PCB). It has a 3.81 mm pitch (the distance between pins) and is designed for a range of wires with a cross-sectional area of 0.14 mm² to 1.5 mm².
This block can provide up to 10 connections and, with a height of only 8 mm above the board, still offers a compact fit. It also comes with a screwable flange for superior mechanical stability. It comes with a screw termination method, which makes for secure connections. A tension sleeve prevents the loosening of wires.
The unit features tin-plated terminal points to maintain conductivity with greater resistance to wear and corrosion. The polyamide housing is durable and can withstand high temperatures.

• Straight body orientation
• Cable mounting type
• Plug type
• Female gender
• Single row
• Dimensions of 48.49 (length) x 16.1 (width) x 11.1 mm (depth)
• Current rating of 8 A
• Voltage rating of 320 V
• Green in colour

Printed-circuit board connector - MC 1,5/10-STF-3,81
