1829345, Phoenix Contact 3.81mm Pitch 2 Way Pluggable Terminal Block, Feed Through Header, Panel Mount, Solder/Slip on

Phoenix Contact MINI COMBICON DFK-MC 3.81mm Panel Feed-Through Terminal Block Headers

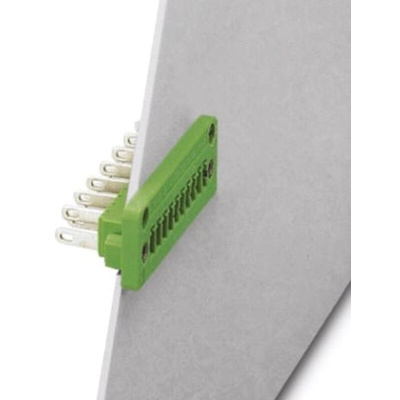

MINI COMBICON DFK-MC 3.81mm pitch panel mount feed-through terminal block headers with an outer header plug-in connection, threaded screw mount front panel flange and an internal (rear panel) 2.8mm quick connect solder eyelet. This MINI COMBICON DFK-MC 3.81mm panel mount terminal block header is for use on a panel thickness range of 0.5 to 4mm.
For marker labels see stock number 648-5508
For screwdriver see stock number 390-9663

Phoenix Contact Mini 2-pin Feed-through Terminal Block Header, 3.81 mm Pitch - DFK-MC 1.5/2-GF-3.81 - 1829345

This mini PCB (printed circuit board) header from Phoenix Contact is used to make a plug-in connection through a housing wall. It provides a simple solution for routing power and communications between individual PCBs. You'll find it used in automotive, industrial and lighting applications.
The outer contacts of this unit are pluggable, letting you insert and remove wires easily. You can make a direct and secure connection without needing any special tools, which saves on time. Its inner contacts have optional solder or plug-in connectors, so you can decide which attachment method best suits the job. The tin-plated contacts are low friction and make optimal surfaces for conducting electrical currents.
This terminal block header meets the mechanical and electrical integrity demands of a reliable wired link and is suitable for use in high-powered applications.

• Straight body orientation
• Current rating of 8 A
• Voltage rating of 320 V
• Male gender
• Polyamide material
• Panel mounting type
• 2 contacts
• 1 row
• Pitch of 3.81 mm
• Dimensions of 22.01 (length) x 11 (width) x 16.2 mm (depth)

Base strip - DFK-MC 1,5/ 2-GF-3,81

Dimension Sheet - 1829345

Catalogue - Terminal Block
