1829361, Phoenix Contact 3.81mm Pitch 4 Way Pluggable Terminal Block, Feed Through Header, Panel Mount, Solder/Slip on

Phoenix Contact MINI COMBICON DFK-MC 3.81mm Panel Feed-Through Terminal Block Headers

MINI COMBICON DFK-MC 3.81mm pitch panel mount feed-through terminal block headers with an outer header plug-in connection, threaded screw mount front panel flange and an internal (rear panel) 2.8mm quick connect solder eyelet. This MINI COMBICON DFK-MC 3.81mm panel mount terminal block header is for use on a panel thickness range of 0.5 to 4mm.
For marker labels see stock number 648-5508
For screwdriver see stock number 390-9663

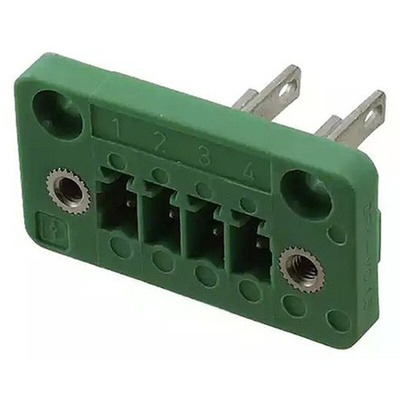

Phoenix Contact Mini 4-pin Feed-Through Terminal Block Header, 3.81 mm Pitch - DFK-MC 1.5/4-GF-3.81 - 1829361

This 4-pin terminal block header from Phoenix Contact consists of two parts that fit on either side of a printed circuit board (PCB) panel. It makes a convenient connection point between internal and external peripherals.
The unit is mounted by simply snapping the two parts together. Its plug-in connector points require very little insertion force and won't dislodge easily, thanks to the header's spring design. This prevents wires from accidentally coming loose. The solder termination points make sure you get a join with excellent mechanical and electrical integrity.
This type of terminal strip is useful in a wide range of electrical applications where you need to guide wires through junction boxes, either because of the distance between devices or difficulty in accessing confined spaces. By installing a terminal strip in the junction box, you can conveniently inspect and maintain electrical connections.

• Straight body orientation
• Tin-plated contact material
• Green colour
• Current rating of 8 A
• Voltage rating of 320 V
• Male header type
• Polyamide material
• Panel mounting type
• 4 contacts
• 1 row
• Pitch of 3.81 mm
• Dimensions of 29.63 (L) x 11 (W) x 16.2 mm (D)
