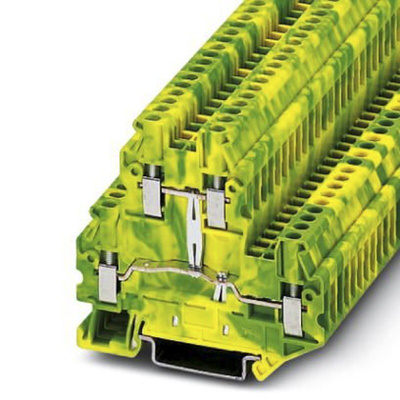

3044665, Phoenix Contact UTTB 2.5-PE Series Green, Yellow DIN Rail Terminal Block, 2.5mm², Double-Level, Screw Termination,

UTTB (UT COMBI) CLIPLINE Double Level Terminal Blocks with Screw Connection

Potential managed on two levels
Amount of space required is reduced by 50% compared to single-level terminal blocks
Separate potentials can be managed as there are two bridge shafts on each level
Cross connection to any number of terminal blocks with the FBS .. continuous plug-in bridge system
Replacement, e.g., for supply with heavy-duty plug-in connectors in the control cabinet

UTTB screw flange (804-4231) is snapped on the DIN rail directly
Same shape as corresponding terminal blocks
Due to the offset arrangement of the screw sockets, only the basic flange is required between two neighbouring connectors as a time

Phoenix Contact Double-Level Terminal Block, 0.14 to 2.5mm² Conductor CSA, 26 to 12AWG - UTTB 2,5-PE - 3044665

Safely manage large electrical loads with this protective conductor terminal block from Phoenix Contact. It features two connection levels for easy power distribution between appliances. With multiple connection points on each level, the unit spreads high voltages across different conductors to improve the safety of your system. Made from insulating polyamide, it protects against excess currents, avoiding damage to machinery and preventing the risk of electric shocks.
Designed with a screw termination method and conductive strips, the block eliminates the need to permanently solder your wires together. This combines reliable connections with the flexibility to adjust them when necessary, so maintenance is straightforward. As it accepts cables with cross-sectional areas between 0.14 and 2.5mm², the component is highly compatible with many industrial devices. Its narrow 5.2mm width means it fits easily into busy setups and optimises space on your DIN rail.

• Meets UL94 V0 flammability standards to signal high resistance to fire
• Short 9mm stripping length reduces the amount of preparation needed for each wire, resulting in faster connections
• Accepts both stranded and solid conductor cores for added versatility

Phoenix Contact CLIPLINE UT Range

UTTB 2,5-PE
