3048603, Phoenix Contact UK 10.3-CC HESI N 3POL Series Black Feed Through Terminal Block, Single-Level, Screw Termination

Phoenix Contact, Fused DIN Rail Terminals

The Phoenix Contact UK-5-HESI series of fuse modular terminal blocks offer excellent protection to electrical systems, protecting them against overcurrent and short-circuiting. Easily clipped onto DIN rail, the range is easily interchanged and therefore offers you greater flexibility with the part.

Features and Benefits

• Large-surface labeling

• Safety lever locked in end position

• Hinged disconnect lever

• Flip-open compartment to accommodate a fuse

• Options to accommodate 5x20mm and 6.3x32mm fuses

• Terminal width 8.2 (5x20mm), and 10.2 (6.3x32mm)

Typical Applications

• Protecting critical sensor or relay equipment

Note

Parameters in tech. spec. table are with respect to UL and CSA Approvals. With UL approval these products have a nominal rating of 10A @ 600V; with CSA approval they have a nominal rating of 25A @ 600V

Approvals

UL recognised component, CSA certified

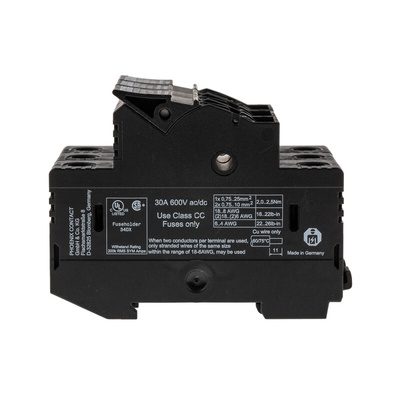

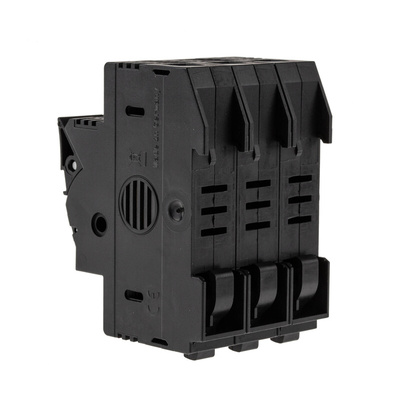

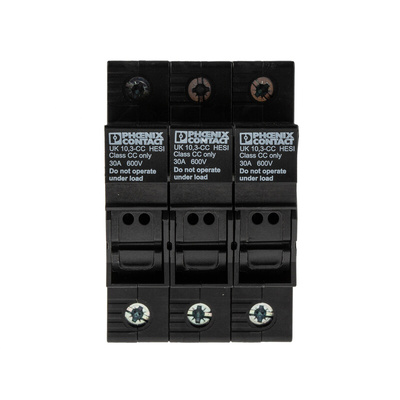

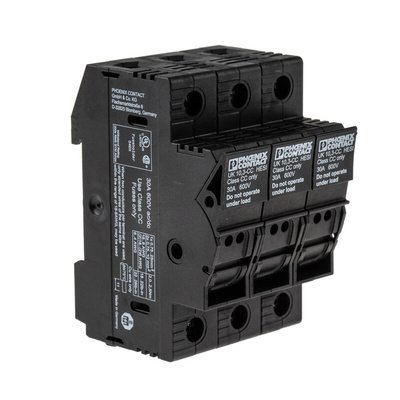

Phoenix Contact Fuse Modular Terminal Block, 690V, 32A - UK 10.3-CC HESI N 3POL - 3048603

Protect your equipment from excess current surges or electrical malfunction with this Phoenix Contact modular terminal block. It has an Underwriters' Laboratory (UL) fire safety rating of UL94V-2 which indicates that in the event of a fire, burning will stop after 30 seconds on any vertical part to protect your equipment and workplace.
This component has a wide operating temperature range from -60°C to +85°C, making it a practical choice for use in harsh environments. It has a surge voltage rating of 2.5kV, with the additional ability to withstand voltage spikes for an added layer of electrical protection. This versatile block has a medium to large wire size of 16 to 4 American wire gauge (AWG), so it's suited a wide range of applications. A current rating of 32A makes the wires connected to it less susceptible to overheating and meltdown, increasing the safety of your setup.

• Screw terminals for simple and secure installation
• Voltage rating of 690V for high-voltage applications
• Compact dimension of 54 (W) x 81 (L) x 65.5mm (D) for space efficiency in small enclosures

UK 10,3-CC HESI N 3POL

Datasheet - 3048603
