7ML5050-0AA21-1DA0, Siemens Ultrasonic Level Controller - Panel Mount, 10 → 32 V dc 2, Контроллер уровня

Siemens Level Controllers

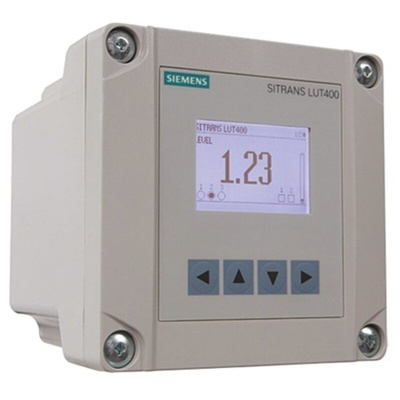

The Siemens SITRANS LUT400 series ultrasonic level controllers is a dual input and panel mount device. This controller is a compact, single point, a long-range device for a continuous level or volume measurement of liquids, slurries and solids and high accuracy monitoring of open channel flow. This controller is an enclosure with display and input voltage is 10VDC to 32VDC. This controller is suitable for a varied range of applications including level measurement, pump control, open channel, storage vessel and dry storage monitoring.

Features and Benefits

HART 7.0 USB communication
3 cable inlets, cable glands not supplied
Single point system
Operational range is between 0.3m and 60m (transducer application/dependent)
Data logger capability
Echomax compatible
Accuracy is ± 1mm and distance is 0.17%
Digital back-up override from point level sensor
Real time clock

Applications

Wet wells
Reservoirs
Flumes/weirs
Chemical storage
Liquid storage
Hoppers
Crusher bins
Dry solids storage

Ultrasonic Controllers LUT 400 Series Data Sheet
