7ME6920-1AA30-1AA0, Siemens Flow Meter Transmitter Transmitter, Программатор

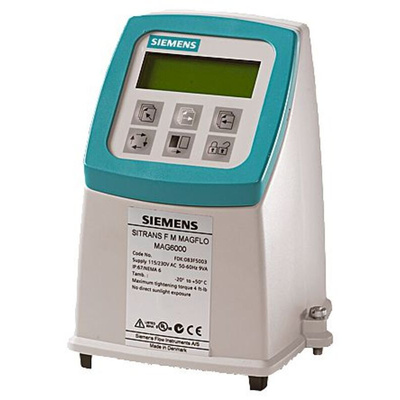

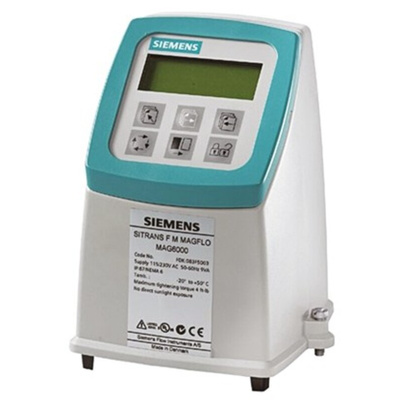

Siemens Flowmeter Transmitter

The Siemens flow meter transmitter is a high-tech device designed for compatibility with MAG FM range of electromagnetic flow sensors. The required supply voltage for this flowmeter is 11VDC to 30VDC. The MAG5000 is used for most general applications for users requiring more functionality and greater accuracy. The transmitter display for compact and wall mount. This device is known for its high performance, easy installation, commissioning and maintenance.

Features and Benefits

Control and display unit
User configurable display
Self-diagnostic and error logging
HART communication protocol (option)
PC controllable using SIMATIC PDM software
Empty pipe detection (specialist cable required)
Backlit display
Password protection
Maximum measuring error ±0.2% and 1mm/second
Superior signal resolution for optimum turn down ratio
Digital signal processing with many possibilities
Automatic reading of SENSORPROM data for easy commissioning
User configurable operation menu with password protection
Transmitters with electrode cleaning unit on request
Comprehensive self-diagnostic for error indication and error logging (see under SITRANS F M diagnostics)
Transmitters mounted in safe area for Ex ATEX approved flow sensors (including barriers)
Batch control (MAG 6000 only)
MAG 6000 with add-on bus modules for hart, foundation fieldbus h1, DeviceNet, Modbus RTU/RS-485, Profibus PA and DP

Applications

Water and waste water
Chemical and pharmaceutical industries
Food and beverage industries
Power generation and utility

Certifications

IP67 rated

7ME6910-1AA10-1AA0 Datasheet
