7ML1115-0CA30, Siemens Ultrasonic Level Ultrasonic

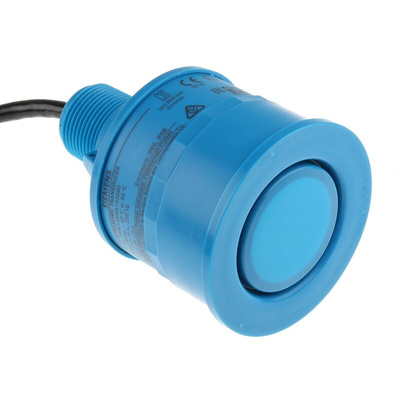

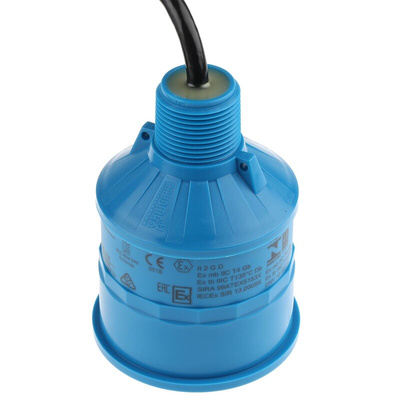

Siemens Ultrasonic Level Transducer, 44kHz Frequency, 8 Bar (G) Pressure - Echomax XPS Series - 7ML1115-0CA30

Need a level of precision that's music to your ears? This ultrasonic level transducer from Siemens hits all the right notes. It's designed to measure the level of liquids, solids or slurries in wet wells. Integral temperature compensation means the unit automatically adjusts its measurements based on temperature changes. This ensures it delivers accurate readings without sacrificing performance. A narrow 12° beam angle reduces the potential for interference or reflections from nearby objects, so you can be sure of smooth operation. Self-cleaning capabilities reduce downtime and boost productivity. PVDF material makes it resistant to steam and chemicals, ensuring you can depend on it to stay the course.

Features and Benefits

• Measuring range between 0.3 and 10m means it's suitable for use in both small tanks and large industrial settings
• IP68 rating indicates full protection from dust and water
• 0.8kg weight means it's easy to handle during set-up

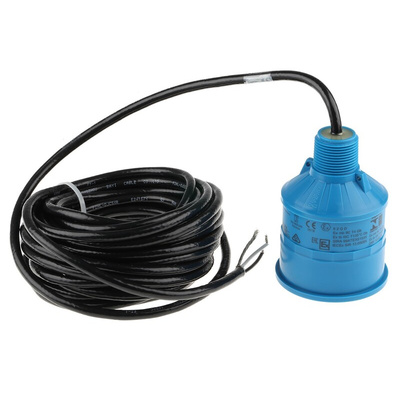

• 10m cable provides flexibility to position the transducer further away from the control system

Can I use this transducer in harsh environments?

Suitable for diverse range of mediums including solids, dusty solids, pellets, slurries, and liquids

Yes, with a broad operating temperature range of -20°C to +95°C, it's safe to use in challenging industrial environments.

Certifications

ATEX II 2 GD
FM Class I Div. 2
SAA Class I Zone 1
IP68 rated

Ultrasonic Transducers Data Sheet
