3118012, Phoenix Contact UK-SI Series Fused DIN Rail Terminal

Phoenix Contact, Fused DIN Rail Terminals

The Phoenix Contact UK-5-HESI series of fuse modular terminal blocks offer excellent protection to electrical systems, protecting them against overcurrent and short-circuiting. Easily clipped onto DIN rail, the range is easily interchanged and therefore offers you greater flexibility with the part.

Features and Benefits

• Large-surface labeling

• Safety lever locked in end position

• Hinged disconnect lever

• Flip-open compartment to accommodate a fuse

• Options to accommodate 5x20mm and 6.3x32mm fuses

• Terminal width 8.2 (5x20mm), and 10.2 (6.3x32mm)

Typical Applications

• Protecting critical sensor or relay equipment

Note

Parameters in tech. spec. table are with respect to UL and CSA Approvals. With UL approval these products have a nominal rating of 10A @ 600V; with CSA approval they have a nominal rating of 25A @ 600V

Approvals

UL recognised component, CSA certified

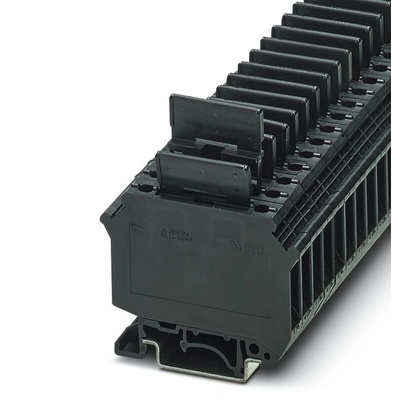

Phoenix Contact Fused DIN Rail Terminal Block - UK-SI -3118012

Protect your electrical systems with this fuse terminal block from Phoenix Contact. It's designed to form part of a PCB board, where it links two or more wires together. It has a flip-open compartment to accommodate a fuse, which prevents any short-circuiting or over-current from damaging the other components.
The terminal block is a versatile choice – it can be clipped onto a DIN rail so you can assemble and reassemble your electrical systems quickly. It also has a hinged disconnect lever, so you can easily disconnect the component from the circuit if necessary.
This product's housing is made from a black polyamide material, which is durable, flame-resistant and insulating, so it offers an improved level of safety for your equipment. This is an ideal terminal block for protecting critical sensors or relay equipment, as well as other applications in electronics.

• Fuse modular terminal block accessory type
• Single level, 2 connections
• For use with cartridge fuse insert 5 x 20 or cartridge fuse insert 5 x 25
• Dimensions of 59.5 (length) x 8.2 mm (width)

Fuse modular terminal block - UK-SI
