3214259, Phoenix Contact UT 2.5-3L Series Grey DIN Rail Terminal Block, Triple-Level, Screw Termination

UT Multi-Level Terminal Block

A professional range of UT Multi-level terminal blocks from Phoenix Contact. These Screw connection terminal blocks have a large wiring space that enables the connection of solid and stranded conductors without ferrules. All UT Multi-level terminal blocks are highly reliable and excellent quality.

A very high wiring density is achieved with these compact three-level terminal blocks
Since function shafts are provided on each level, all potential distribution work can be implemented at speed
Each terminal point can be given a large label for ease of identification

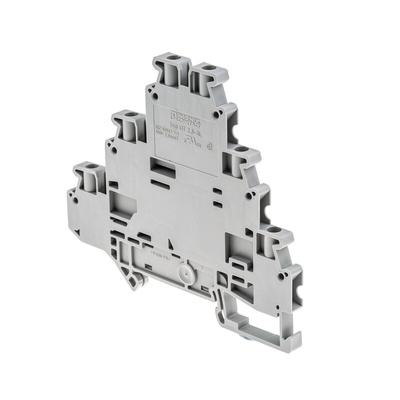

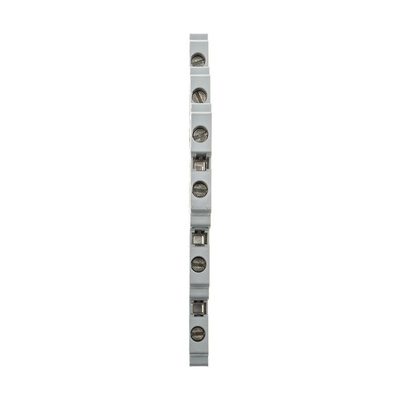

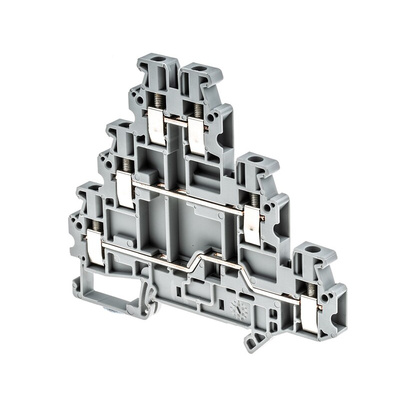

Phoenix Contact UT Multi-Level Terminal Block, 500V, 24A - UT 2.5-3L - 3214259

Looking for a neat and secure wire arrangement in your equipment? Turn to this UT multi-level terminal block from Phoenix Contact. The block has three levels, which allow for multiple wire connections on a single block – this boosts efficiency and maximises use of space. It has a light weight of 25g for easy handling and won't add strain on bust setups. A surge voltage rating of 6kV means the unit can safely resist substantial voltage spikes.
Thanks to compact dimensions of 5.2 (width), 90 (length) and 77.5mm (depth), this block is suitable for installation in small enclosures. A wide operating temperature range from -60°C to +105°C means you can rely on it in harsh working environments. For easy identification, you can label each terminal without obstructing its functional parts. You'll find terminal blocks like this one used in oil and gas automation systems and railway applications.

• Voltage rating of 500V for medium-voltage applications
• UL94V-0 (Underwriters' Laboratory) fire safety rating means it's self-extinguishing within 10 seconds
• Polyamide (PA) insulation to prevent the risk of electric shocks
• Screw termination method for quick and easy installation

Phoenix Contact CLIPLINE UT Range

Datasheet 3214259

Datasheet 3214259
