3214301, Phoenix Contact UT 2.5-PE/L/L Series Grey DIN Rail Terminal Block, 2.5mm², Triple-Level, Screw Termination

UT 2.5 Three Level Screw Connection Earth Modular Terminal Blocks

A very high wiring density is achieved with the compact three-level terminal blocks
Since function shafts are provided on each level, all potential distribution work can be implemented at speed
Each terminal point can be given a large label for ease of identification
The PE/L/L (804-4351) and PE/L/N (804-4342) types offer clear and unambiguous assignment thorough the use of colour coding of the housing surfaces

804-4345 is tested for railway applications

Phoenix Contact Earth Modular Terminal Block, 26 to 12AWG, 19A Current Rating - UT 2.5-PE/L/L - 3214301

Looking for a reliable way to protect personnel and equipment against electrical hazards? Use this earth terminal block from Phoenix Contact. Its PA housing material offers good insulation, helping to keep you safe from electric shocks. There are six connections arranged in three levels to keep your wiring organised and each electrical terminal includes space for a label, so you can easily identify each connection for easy maintenance.
The terminal block has a voltage rating of 500V and can withstand surges of up to 6kV, making it ideal for use in heavy-duty systems. It features standard M3-sized screw connections for a secure attachment that won't easily come loose, even in the event of heavy vibrations. This terminal block accommodates wires ranging in size from 26 to 12AWG, so it's a versatile option.

• Meets IEC 60947 safety standards for low-voltage switchgear
• Current rating of 19A for use in high-current applications
• Designed for mounting on a DIN rail for ease of installation
• Light weight of just 29.46g to minimise strain on your equipment

Phoenix Contact CLIPLINE UT Range

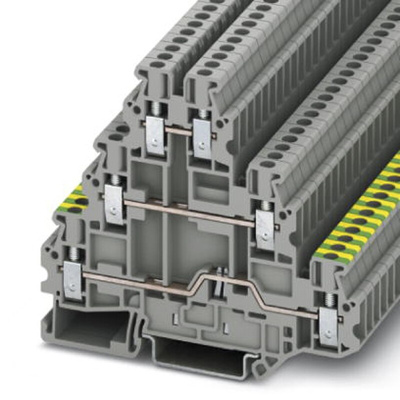

Ground modular terminal block - UT 2,5-PE/L/L

8044351_Line Drawing
