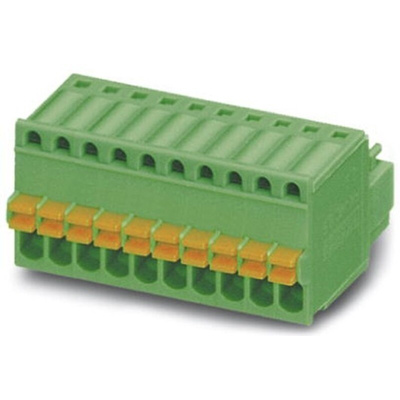

1881396, Phoenix Contact 2.5mm Pitch 9 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

FK-MC PCB Connectors - Phoenix Contact

The FK-MC series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MC series are rated for 4 A with a voltage of 160 V and boasts a 2.5mm pitch for versatile use.

The contact material is the FK-MC connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:

• Spring clamp technology for quick connection - no tools needed


• High copper content for low resistance and greater conductivity


• Integrated test points for testing with connector inserted


• 2 to 12-way versions


• Flammability rating UL94 V0


• Defined contact force allows your connection to stay strong over-time


• 1mm testing port for convenient testing


• Operation and conductor connection from one direction enable integration into front of the device

Applications:

The MICRO COMBICON 0.5 series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.

FK-MC 0,5/ 9-ST-2,5
