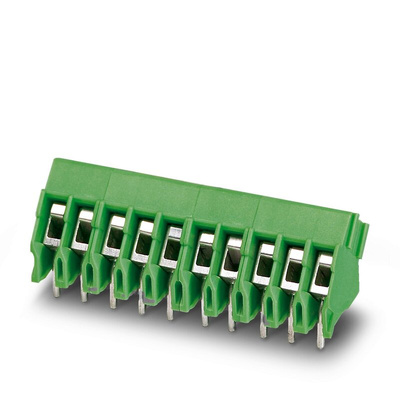

1989036, Phoenix Contact PTA 1.5/10-3.5 Series PCB Terminal Block, 10-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact PCB Terminal Strip, Straight Body Orientation, 17.5A Maximum Load Current - PTA 1,5/10-3,5 - 1989036

Streamline your PCB connections with this 10-pin terminal strip from Phoenix Contact. It's a quick and easy way to attach multiple conductors to your circuit board in a standard footprint. The screw termination method means it's simple to use without special tools. Just strip the end of your wire to 5mm, insert it into the slot and screw the conductor securely in place.
Thanks to a hefty 2.5kV surge voltage rating, this unit keeps sensitive circuitry safe if there's an electrical fault. The tough polyamide housing is resistant to impact, so it can handle heavy-duty industrial applications.
For maximum flexibility, this strip is compatible with wire sizes between 26 and 16AWG. It's a practical choice for communications equipment or safety and security devices.

• Self-extinguishing in under 10 seconds to help prevent the spread of fire
• 160V nominal voltage means it's well-suited to medium-voltage applications
• 45° orientation angle makes the most of limited space on a crowded panel
• Low 5.2g weight means minimal strain on your PCB

PTA 1,5/10-3,5

Line Drawing - 1989036
