RVG200A6A6Y0Y0A, ABB RVG200, 12 Input Channels, 1 Output Channels, Paperless Chart Recorder Measures Current, Millivolt, Resistance,, Диаграммный самописец

ABB Chart Recorder

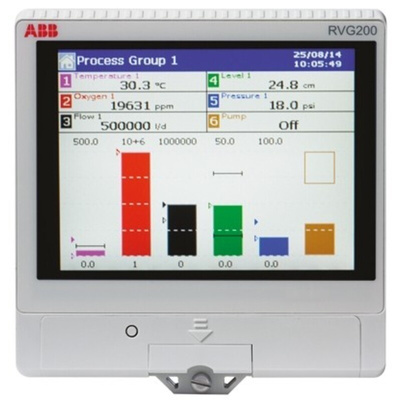

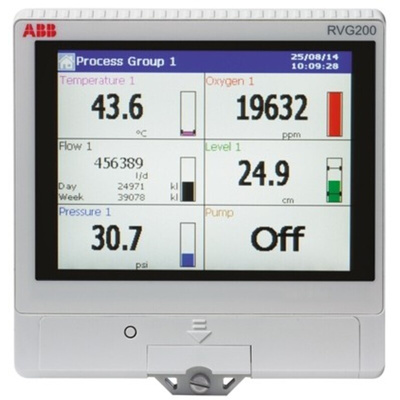

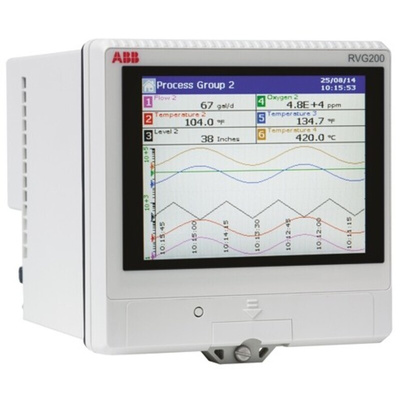

The ABB screenmaster RVG200 is a secure 12-channel paperless chart recorder with operating voltage that ranges between 100Vac and 240Vac. The 12 process signals can be connected directly to the RVG200's analogue inputs or transferred to it via digital communication. The data is archived securely in an encrypted format for review using the accompanying DataManager Pro PC software. A touch screen crystal clear 5.7in TFT display, featuring swipe gesture control provides fast and intuitive operation. USB ports further simplify operation by enabling peripherals like a keyboard, mouse or barcode scanner to be attached. It is used to monitor and measure current, millivolt, resistance, temperature and voltage.

Features and Benefits

Advanced functionality like math and logic, batch recording and flow totalization
Easy network integration to control system with Ethernet and RS485 MODBUS RTU master and slave
Easy to use
High security data recording up to 2GB of internal memory
One relay output
Scalable high specification I/O
High security data recording
Touchscreen operation and configuration
Standard Ethernet communications provide remote data access, process supervision and easy integration to control systems

A copy of DataManager Pro PC software is supplied with the recorder (pre-loaded on to the memory card supplied) to review data recorded by the RVG200.

The basic functions of DataManager Pro are free of charge. Only if the user wants to use the advanced features (e.g. automatically collecting the data from recorders via Ethernet) is a license required.

Certifications

IP66 rated
NEMA4X
