RS PRO Long Straight Lever Micro Switch, Solder Terminal, 16 A @ 250 V ac, SP-CO, Микропереключатель

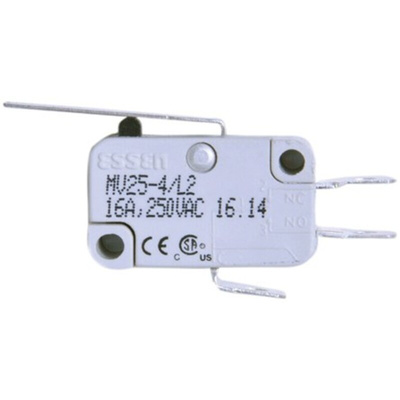

RS PRO SP-CO Long Straight Lever Microswitch, 16 A at 250 V AC

Activate and deactivate your electrical equipment with this straight lever microswitch from RS PRO. It has a spring-loaded lever that is used to close or open the contacts that are housed inside its case. The lever has an operating force of 250 grams, which makes it easy to turn your circuitry on and off.
The switch has silver contacts that are designed for soldering, so you can create secure and long-lasting electrical connections. A wide operating temperature range of -55°C to +85°C means you can use it in a variety of demanding environments, from cold factories to hot warehouses. It's particularly suitable for automotive applications, as well as vending machines and telecommunications equipment. Engineers have tested this switch for quality and safety.

Features and Benefits

• Long straight lever actuator
• Glass-filled thermoplastic case
• Contact current rating of 16 A at 250 V AC
• Voltage rating of 250 V AC
• Operating temperature range of -55°C to +85°C
• Operating force of 250 g
• Release force of 25 gf (gram-force)
• V3 switch housing
• Solder terminal type
• Single Pole Changeover (SP-CO) contact configuration
• Silver on copper contact material
• Mechanical life of 10,000,000 operations
• Meets standards including Conformité Européenne (CE), Canadian Standards Association (CSA) and IEC (International Electrotechnical Commission) 1058-1
