RS PRO Plunger Micro Switch, Quick Connect Terminal, 16 A @ 250 V ac, SP-CO, Микропереключатель

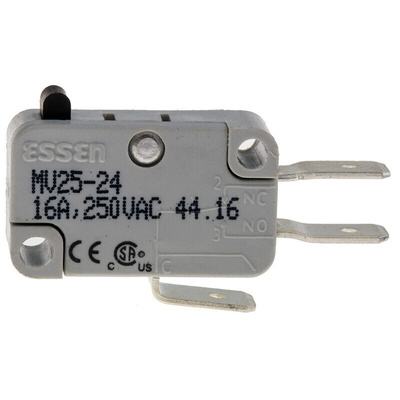

RS PRO SP-CO Plunger Microswitch, 16 A at 250 V AC

This snap-action plunger microswitch from RS PRO allows you to activate and deactivate your electrical equipment quickly and efficiently. The plunger mechanism means that the contacts will instantly switch at a specific stroke position regardless of operating speed or force.


This unit is a quick-connect terminal type, meaning that it has blade-type connectors that can fit precisely into a female terminal. The fine silver contacts offer high conductivity and corrosion resistance, so you're guaranteed a switch with an extremely long mechanical lifetime. It has a wide operating environmental temperature range of -55°C to +85°C for use in a variety of challenging settings.


This microswitch is well-suited to telecommunications equipment, vending machines and automotive applications. It has been tested and approved by engineers for reliability and safety.

Features and Benefits

• Plunger actuator


• Glass-filled thermoplastic case


• Contact current rating of 16 A at 250 V AC


• Voltage rating of 250 V AC


• Operating temperature range of -55°C to +85°C


• Operating force of 400 g


• Release force of 80 gf (gram-force)


• V3 switch housing


• Quick-connect terminal type


• Single Pole Changeover (SP-CO) contact configuration


• Silver on copper contact material


• Mechanical life of 10,000,000 operations


• Meets standards including Conformité Européenne (CE), Canadian Standards Association (CSA) and IEC (International Electrotechnical Commission) 1058-1
