RS PRO Long Straight Lever Micro Switch, Quick Connect Terminal, 16 A @ 250 V ac, SP-CO, Микропереключатель

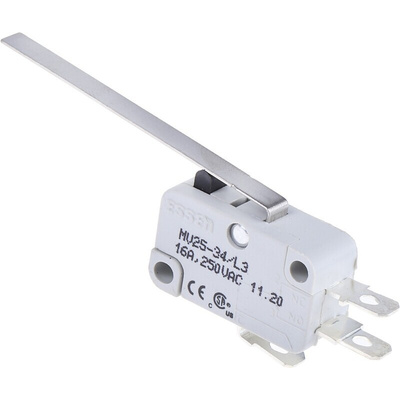

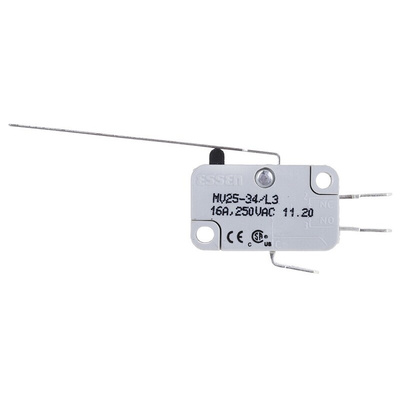

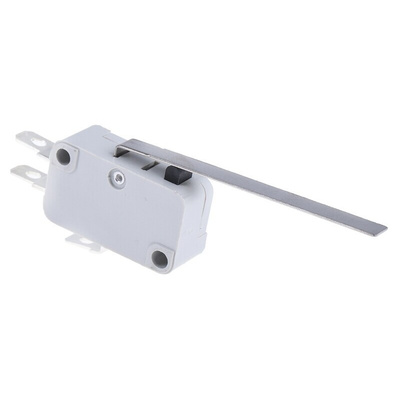

RS PRO SPDT Long Straight Lever Microswitch, 16 A @ 250 V AC

Keep yourself and your employees safe with this microswitch from RS PRO. It can be used to prevent machinery from turning on or doors from closing when needed. A single pole, double throw contact configuration (SPDT) allows you to switch between two circuits.

This safety device has a positive snap action which allows it to react quickly to the slightest pressure. The contacts on the switch are silver-plated for optimal conductivity and durability. It's also easy to assemble thanks to the quick-connect terminals. A hardwearing, glass-filled thermoplastic housing provides the kind of strength needed for industrial environments.

As part of the tried and tested RS PRO range, this microswitch has undergone stringent quality controls to ensure consistency. It conforms to the IEC 1058-1 standard as a safe switch and meets European CE safety standards. This type of switch is found in telecommunications equipment, vending machines and car doors.

Features and Benefits

• Microswitch
• Long straight lever-type actuator
• Single-pole, double-throw (SPDT) configuration
• Snap-action means the speed of travel of the contacts does not rely on the speed of actuation
• Robust V3 glass-filled thermoplastic housing
• Silver on copper contact material
• Quick connect terminals
• Contact current rating of 16 A at 250 V AC
• Operating force of 400 gms
• Release force of 80 gf
• Maximum operating temperature of +85˚C
• Minimum operating temperature of -55˚C
• Mechanical life of 1,000,000 operations
• Conforms to IEC 1058-1 standard as a safe and effective switch
• Meets CE, CSA and LCSO safety standards
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
