RS PRO Long Roller Lever Micro Switch, Quick Connect Terminal, 16 A @ 250 V ac, SP-CO, Микропереключатель

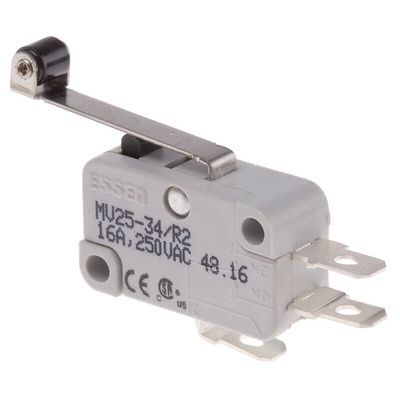

RS PRO SP-CO Long Roller Lever Microswitch, 16 A at 250 V AC

Use this long roller lever microswitch from RS PRO to activate and deactivate electrical devices. The spring-loaded lever lets you easily close or open the contacts inside its casing.


The switch is a quick-connect terminal type, so you can create electrical connections without the need for soldering. Its silver-on-copper contacts offer superior conductivity and excellent resistance to corrosion, so you're assured a very long mechanical lifetime.


This unit has a wide operating temperature range of -55°C to +85°C, meaning you can use it everywhere from cold manufacturing plants to hot warehouses. Switches of this type are often found in vending machines, telecommunications equipment and automotive applications.

Features and Benefits

• Long roller lever actuator


• Glass-filled thermoplastic case


• Contact current rating of 16 A at 250 V AC


• Voltage rating of 250 V AC


• Operating temperature range of -55°C to +85°C


• Operating force of 400 g


• Release force of 80 gf (gram-force)


• V3 switch housing


• Quick-connect terminal type


• Single Pole Changeover (SP-CO) contact configuration


• Silver on copper contact material


• Mechanical life of 10,000,000 operations


• Meets standards including Conformité Européenne (CE), Canadian Standards Association (CSA) and IEC (International Electrotechnical Commission) 1058-1
