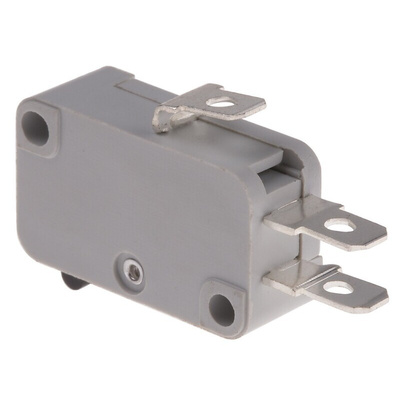

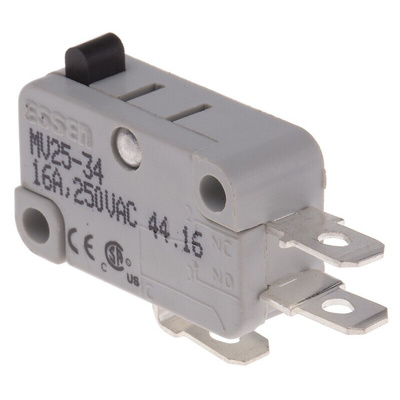

RS PRO Plunger Micro Switch, Quick Connect Terminal, 16 A @ 250 V ac, SP-CO, Микропереключатель

RS PRO SP-CO Plunger Microswitch, 16 A at 250 V AC

This plunger microswitch from RS PRO uses a snap-action mechanism to turn your electrical contacts on and off efficiently and quickly. It has an operating force of 400 grams, so you can activate and deactivate circuitry without too much effort.


The quick-connect terminal type makes mounting easy without the need for soldering or tools. The switch has fine silver contacts that are extremely conductive as well as corrosion-resistant for a long and reliable operating life. The switch is encased in a standard, compact V3-sized housing for convenient installation.


Switches of this type are well-suited to heavy-duty applications in the automotive and telecommunications industries. This unit has been tested by engineers to ensure its reliability and safety.

Features and Benefits

• Plunger actuator


• Glass-filled thermoplastic case


• Contact current rating of 16 A at 250 V AC


• Voltage rating of 250 V AC


• Operating temperature range of -55°C to +85°C


• Operating force of 400 g


• Release force of 80 gf (gram-force)


• V3 switch housing


• Quick-connect terminal type


• Single Pole Changeover (SP-CO) contact configuration


• Silver on copper contact material


• Mechanical life of 10,000,000 operations


• Meets standards including Conformité Européenne (CE), Canadian Standards Association (CSA) and IEC (International Electrotechnical Commission) 1058-1
