RS PRO Lever Subminiature Micro Switch, Solder Terminal, 2 A @ 250 V ac, SPST, IP40, Микропереключатель

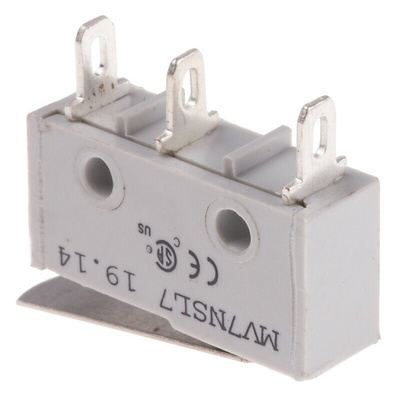

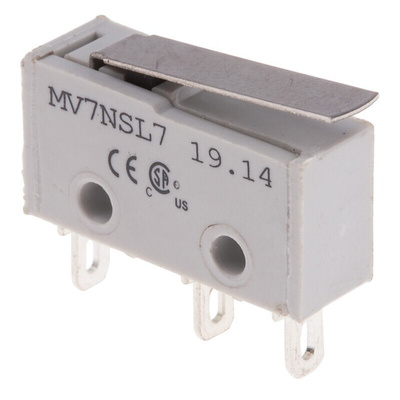

RS PRO 1NO/1NC Miniature Lever Micro Switch (2 A @ 250V ac)

The RS PRO miniature Micro Switch is robust and reliable SPDT (Single Pole Double Throw) lever switch. Constructed with a heavy duty moulded glass filled flame retardant case for a hardwearing switch suited to applications requiring low operating force.
The RS PRO Micro Switch is built with a snap action 1NO/NC contact arrangement featuring Silver plated Copper terminals. Designed for simple solder termination and easily mounted to a smooth flat surface via 2 x M2 (or #2 UNF) screw holes on the side of the unit.
The micro switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and consistent Lever switch ideal for a wide range of environments and applications.

Features and Benefits

• Miniature micro switch


• Lever actuator


• Contact Configuration SPDT


• Contact Arrangement 1NO/1NC


• Glass filled flame retardant housing


• Snap action


• IP40 rated


• Silver contacts


• Silver plated Copper terminals


• Side mounted


• Solder termination


• Total weight of 2.5g

Approvals and Standards: CE, CSA, UKCA, IEC 1508-1, U L94V-0
